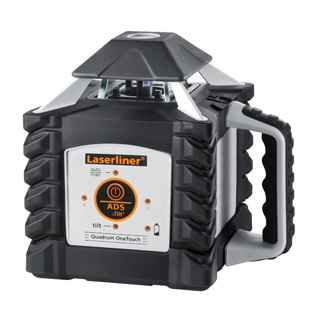

Laserliner Quadrum OneTouch 410 S Rotary level 400m 635 nm (< 5 mW)

Laserliner Quadrum OneTouch 410 S Rotary level 400m 635 nm (< 5 mW)

EAN: 4021563677849
MPN: 053.200A
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Design

Tripod mountable Y
Type Rotary level

Features

Levelling accuracy (±) 0.075 mm/m
Maximum range 400 m
Laser class 3R
Laser diode 635 nm (< 5 mW)
Colour of laser beam Red

Battery

Operating time 50 h

Additionally

Self-levelling range (±) 5 °
Horizontal automatic levelling, max. 400 m radius, 635 nm, class 3R, < 5 mW, IP 66 - Robust waterproof housing
- OneTouch operation: The laser is switched over from setup mode (AntiShake) into secure mode (ADS-Tilt) with a single press of a button – simple operation.
- Sensor Automatic: electronic positioning motors controlled by temperature-stable sensors make horizontal alignment automatically.
- AntiShake: for rapid set-up, on vibrating surfaces and in windy conditions.
- ADS tilt: automatic shutoff by ADS (Anti-drift system) when there is an external disturbance.
- A manual slope mode permits the layout of gradients up to 5 °.
- With its extra long receiver unit, the SensoLite 410 enables quick laser acquisition over great distances. LC displays at the front and rear, super-bright three colour signal LEDs and melodies indicate the level of the laser beam. Tough, waterproof housing with powerful head and side magnets.
- All functions of the rotary laser can be controlled with the remote control from up to 40 m.
- The 4 IR receiving diodes allow this instrument to be remotely operated from all sides.
- Transport Lock: a special motor lock protects the unit during the transport.
- Long service life thanks to effective power supply.
