Other features
| Manageability features |
Image Ultra - HIIT Compliant Drivers - Vista Only, Secure Data Disposal, ThinkVantage Image Ultra Builder - Vista Support, ThinkVantage Update Builder, ThinkVantage Update Retriever |
| Memory type |
DDR3 SDRAM |
| Processor manufacturer |
Intel |
| Security features |
Boot sequence control, Boot without keyboard or mouse, Configuration password, Cover key lock, Diskette Boot inhibit, Diskette I/O control, Hardfile I/O control, Padlock loop, Power on password, Security slot (for attachment of optional cable lock), Ser |
| Pointing device |
USB Optical Wheel Mouse |
| Hard disk drive type |
250GB SATA/ 7200 |
| Expansion slots |
PCI Express 2.0 |
| Modem type |
N |
| Form factor |
Tower\nTower (4x6) |
Processor
| Number of QPI links |
1 |
| Processor cache |
4 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Triple |
| Processor operating modes |
64-bit |
| ECC supported by processor |
Y |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
24 GB |
| Processor front side bus |
1066 MHz |
| Processor cache type |
Smart Cache |
| Processor cores |
2 |
| Processor frequency |
2.4 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 x 45 mm |
| Processor ARK ID |
40800 |
| Physical Address Extension (PAE) |
Y |
| Embedded options available |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
Y |
| Supported instruction sets |
SSE4.2 |
| Intel 64 |
Y |
Memory
| Memory clock speed |
1333 MHz |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
12 GB |
| Internal memory |
3 GB |
Storage
| Hard drive capacity |
250 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
4.8 GT/s |

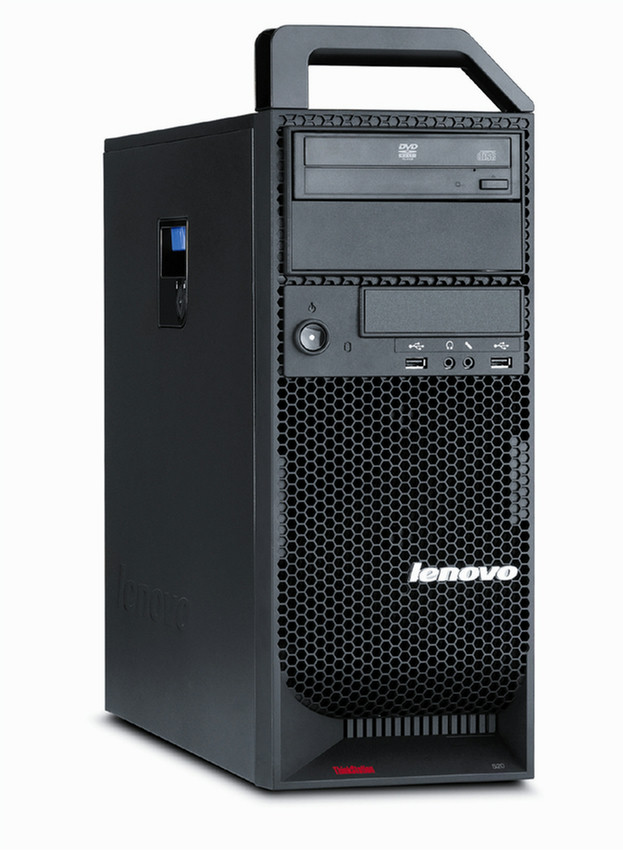

Intel Xeon W3503(2.4GHz), 3GB DDR3, 250GB SATA, DVD-RW, Gigabit Ethernet, W7
The ThinkStation S20 series offers a blend of essential features and technology including:
- Microsoft Windows Vista Business 64 preloaded on select models
- Microsoft Windows XP Professional 32 preloaded on select models
- Enhanced ECC DDR3 SDRAM system memory
- Integrated Gigabit Ethernet
- High-performance Intel processors
- High-performance video graphics adapters
- Numerous data protection tools
