Other features
| External drive bays |
1 x 3.5", 4 x 5.25" |
| Internal drive bays |
4 x 3.5" |
| Ventilation fan(s) |
1 x 14cm(1000prm), 1 x 12cm(1500prm) |
| Expansion slots |
8 |
Design
| Form factor |
Midi-Tower |
| Type |
PC |

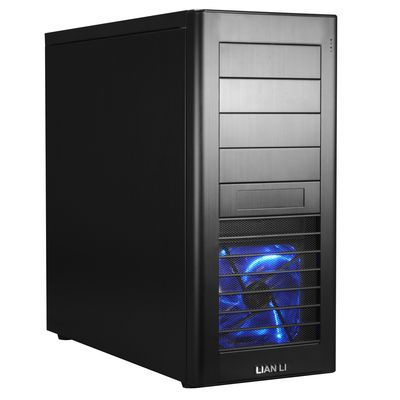

PC-7FN - Mid Tower, Aluminum, ATX/M-ATX, USB2.0 x 2/HD+AC97 Audio, Black
- The cutting edge tool-less design is an important key feature in 2009 Lian Li cases. Lian Li designer considered end user requirements, like those who need to build systems faster, or swap out components often. The brand new tool-less modules can make Lian Li users’ life much more convenient.
- The look of PC-7FN has no door panel design; users can access the external drive easier. Attractive anodized aluminum give a flamboyant finishing touch to this outstanding high-end chassis.
- The new internal layout has the motherboard on top of the power supply unit, which allows for easier access to the motherboard as well as more room above, thus larger CPU coolers can be used. The power supply unit at the button of the case is cooled with fresh cool air directly from the outside of the case, instead of pre-heated air from within. This will bring down the core temperatures and extend the lifespan of the PSU significantly.
- The new PC-7FN is a mid-tower case, which is ideal for the latest graphics cards in combination with the best thermal dynamics.Easily adjustable to optimize your hardware setup. Especially in the advent of adding in new graphics cards, equipped with 8 PCI slots, can hold three or more graphics cards, supports CrossfireX™ and 3-way SLI™.
- Lian Li uses the best “Made in Taiwan” high quality aluminum panel for all Lian Li chassis. The solid main chassis was folded with 1.5mm thick aluminum sheeting to make a more sturdy structure which has less vibration. The removable front panels are joined with specialized plastic kits that prevent the metal parts from touching each other, ultimately reducing noise created by fans and HDD vibration.
- The PC-7FN is equipped with large cooling fans, with low RPM, which still provide enough air flow to cool down the hardware adequately. The front 140mm intakes blue LED fan runs at 1000RPM.and the rear 120mm fan extracts the hot air out at 1200RPM.
- Lian Li designers spent months to upgrade Lian Li’s HDD cage; the new HDD cage using special Thumb Screws with rubber suspension. no tool required, simply secure the anti-vibration rubber ring to the HDD, and slide the HDD into the cage. And there is a gate to secure the HDDs
- The new 5.25” bay tool-less mounting incorporates a mounting bar equipped with rubber padding. After closing the mounting bar, the rubber pad pushes and holds the 5.25” device in position to both secure and absorb vibration from the device.
- The Power Supply has rubber pads for both insulation and support. Also secure the PSU without scratching the painted surface.
- There is a 140mm intake blue LED fan on PC-7FN, The fan can output high air flow volume with lower RPM to push the cold air through the HDD rack.
- The rear 120mm exhaust fan just next to the CPU, it can remove the hot air out fast and silently.
- There are vents on the PCI slots, provids extra cooling to graphics card.
- The power supply unit is at the bottom of the case. It can draw in cold air directly through the vent below the power supply unit. This cooler, fresh air will keep your PSU components more cool and stable and thus extend the PSU lifecycle.
- PC-7FN supports liquid cooling system, the two holes at the rear of the case allows water tubes to pass through, and the rubber cover can protect the tubes away from cutting.
- 2009 has seen an all-new tool-less design from Lian Li aluminum chassis. To do this required a great many innovative patents to be filed worldwide. The ideas will make installing and maintenance much easier. For example when installing the 5.25” optical drive, just slide the drive into the 5.25” bay, and close the mounting bar to secure the optical drive, as simple as that.
- The installation of the hard disk is very easy, and tool-less. Place the hard disk into the aluminum cage, and close the clip to secure the hard disk.(2.5" HDD install feasible), Slide the hard disk within the cage into the special hard disk rack with the rubber suspension grommet.
- User can easily rotate the tool-less hard disk cage to 90 degree for your space management.
- The front intake fans has equipped air filter, to stop dust entering the chassis. These air filter were washable, envirnoment friendly
- Multi-media port connectors follow international specification standards, with one connector for easy installation. USB port, Audio supports HD Audio or AC97 Audio. The dual design is for better compatibility options. All I/O ports on the top, allow for easy access.
- There is a special quadrate opening of motherboard tray, user can easily switch the cpu's radiator without remove motherboard.
