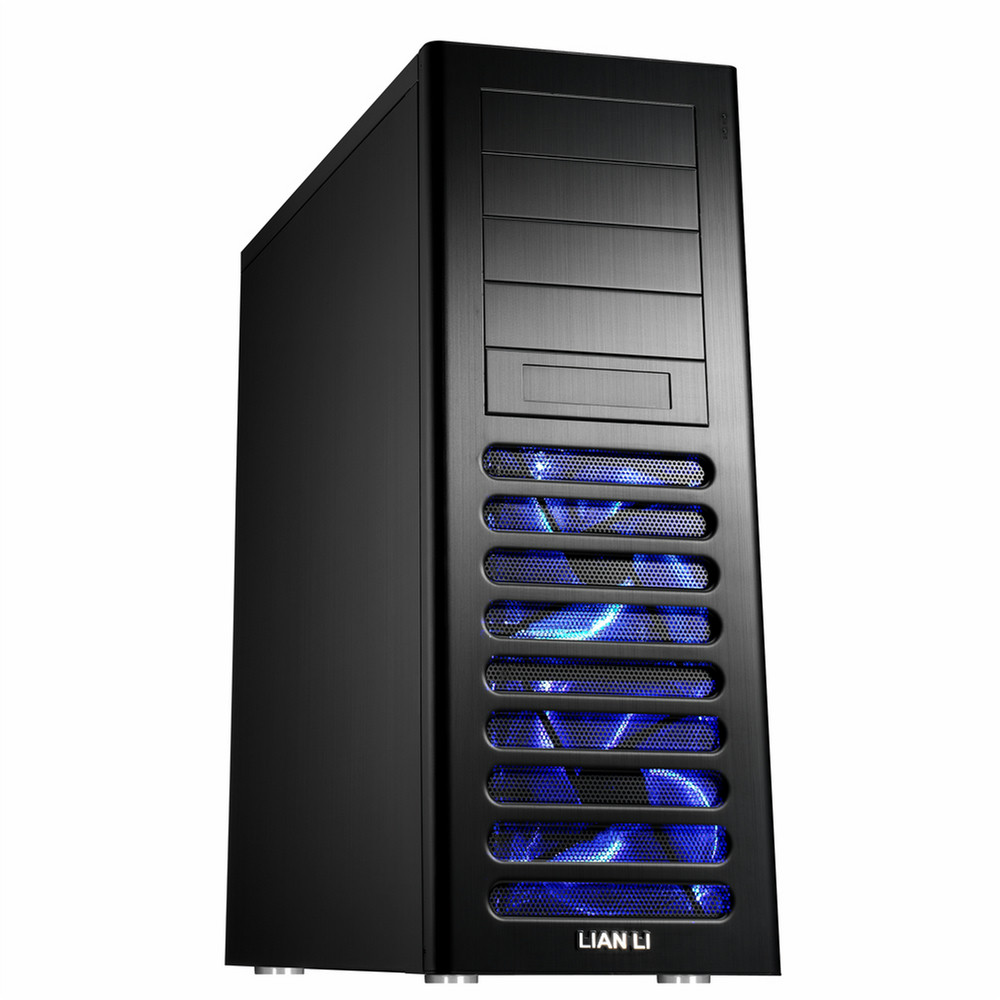

Lian Li PC-A70F Full-Tower Black computer case

Lian Li - The Ultimate Craft

"Quality" is always the essence of Lian Li's products since 1998 when Lian Li offered the first all aluminum chassis to the market. Since then, Lian Li exemplifies the same quality standards, ensuring durability and craftsmanship come first. All products are manufactured in Taiwan and distributed to worldwide markets.

In 2009, Lian Li has introduced introduce the unbeatable PC-A70F for the PC gaming enthusiasts, and gaming professionals who want a high quality product with a unique flavor. The PC-A70F is manufactured in TAIWAN; handcrafted from high quality aluminum and incorporates Lian Li’s finest workmanship which has built up over more than two decade’s worth of experience.

Lian Li’s high standard of Quality requirement. All the sharp edges have been removed for user’s safety. In addition, the external and internal surfaces have hair-line brush anodized aluminum in keeping with Lian Li’s classical style.

LIAN LI - Excellent Design

The cutting edge tool-less design is an important key feature in 2009 Lian Li cases. Lian Li designer considered end user requirements, like those who need to build systems faster, or swap out components often. The brand new tool-less modules can make Lian Li users’ life much more convenient.

User Interface is very important key in Lian Li chassis. The external fixture, user interface, and the internal structure all has been test to meet Lian Li’s high quality standard. 2009 Lian Li launched the new PC-A70F, with all aluminum alloy chassis, round edge design with stylish look. PC-A70F has hair-line brush anodized aluminum finishing with diamond cut detail.

Lian Li Fine Craftmanship Product

Huge internal space fits E-ATX motherboard, and graphics card, which can up to 390mm long, and there are room for 10 hard drivers. There are 2 x 12cm and 2 x 14cm cooling fans to cool the system down, and a lot of internal space for liquid cooling system. It is an ideal for gamer and pro user!

PC-A70F has equipped two 140mm cooling fans in the fornt of the chassis, there are two fans intake the cool air into the case, The Fan not only cool the HDD down, it also help the motherboard's North & South bridge chipset, and the graphics card.

The new PC-A70F is a full-tower case, which is ideal for the latest graphics cards in combination with the best thermal dynamics. All the internal installation can be done without tools, and is easily adjustable to optimize your hardware setup. Especially in the advent of adding in new graphics cards, equipped with 7 PCI slots, can hold two or more graphics cards, supports Crossfire™ and SLI™.

Silent Performance

Lian Li uses the best “Made in Taiwan” high quality aluminum panel for all Lian Li chassis. The solid main chassis was folded with 1.5mm thick aluminum sheeting to make a more sturdy structure which has less vibration. The removable front panels are joined with specialized plastic kits that prevent the metal parts from touching each other, ultimately reducing noise created by fans and HDD vibration.

The new 5.25” bay tool-less mounting incorporates a mounting bar equipped with rubber padding. After closing the mounting bar, the rubber pad pushes and holds the 5.25” device in position to both secure and absorb vibration from the device.

Lian Li designers spent months to upgrade Lian Li’s HDD cage; the new HDD cage using special Thumb Screws with rubber suspension. no tool required, simply secure the anti-vibration rubber ring to the HDD, and slide the HDD into the cage. And there is a gate to secure the HDDs

The aluminum PCI tool-less mounting module is equipped with a rubber pad which can hold the graphics card firmly while closing the gap found in the PCI bracket and PCI slot to reduce noise from escaping air and furthermore reduce vibrations.

The Power Supply has rubber pads for both insulation and support. The mounting clip is also aligned with rubber to reduce vibrations but also secure the PSU without scratching the painted surface.

Thermal Solution

There are two 140mm intake blue LED fan on PC-A70F, The fan can output high air flow volume with lower RPM to push the cold air through the HDD rack.

There is a 120mm exhaust fan behind HDD cage to draw the hot air out, and improve the air flow inside the chassis.the openings on the bottom of the HDD cage to allow the air to cool the HDD.

The rear 120mm exhaust fan just next to the CPU, it can remove the hot air out fast and silently.

There are vents on the PCI slots, provids extra cooling to graphics card.

PC-A70F supports liquid cooling system, the two holes at the rear of the case allows water tubes to pass through, and the rubber cover can protect the tubes away from cutting.

User Friendly Design

2009 has seen an all-new tool-less design from Lian Li aluminum chassis. To do this required a great many innovative patents to be filed worldwide. The ideas will make installing and maintenance much easier. installing the 5.25” optical drive, just slide the drive into the 5.25” bay, and close the mounting bar to secure the optical drive, as simple as that.

The installation of the hard disk is very easy, and also requires no tools.. secure the anti-vibration rubber ring to the HDD, and slide the HDD into the cage.The patented too-less HDD cage combines with patented anti-vibration rubber grommets to suspend the HDD’s in a noise free environment.

To install PCI add-on cards require no tools at all. Simply open the aluminum arm of the tool-less PCI add-on card holder, insert the add-on card to the motherboard slots, and close the aluminum arm to hold the add-on card in position. The additional rubber padding on the aluminum arm assists in gripping the card bracket and securing it firmly.

To install PSU require no tools. Simply open the aluminum PSU holder, insert the PSU in position, also can turn PSU's fans up or down to suit your need, then close the aluminum PSU holder.

Two front intake fans has equipped air filter, to stop dust entering the chassis. These air filter were washable, envirnoment friendly

The case front intake fans has equipped air filter,to stop dust entering the chassis. These air filter were washable, envirnoment friendly.

There is a special quadrate opening of motherboard tray, user can easily switch the cpu's radiator without remove motherboard.

There is a patented cable management clamp for cables to pass through, allow uesr convenient manage the cables.

To install motherboard require no tools, use tool-less screw to screw a motherboard on case, easily and quickly.

Multi-media port connectors follow international specification standards, with one connector for easy installation.

Audio supports HD Audio or AC97 Audio. The dual design is for better compatibility options.
All I/O ports on the top cover, allow for easy access, there is also a dust-free cover to protect these connectors.
