Lian Li PC-Q03

Lian Li PC-Q03

EAN: 4718466004727
MPN: PC-Q03A
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Power supply

Power supply included N

Design

Maximum PSU length 160 mm
Maximum CPU cooler height 60 mm
Maximum graphics card length 180 mm
Side window N
Form factor Mini-Tower
Type PC
Number of 5.25" bays 1

Other features

Internal drive bays 1 x 3.5", 2 x 2.5"

Ports & interfaces

USB 3.0 (3.1 Gen 1) Type-A ports quantity 3

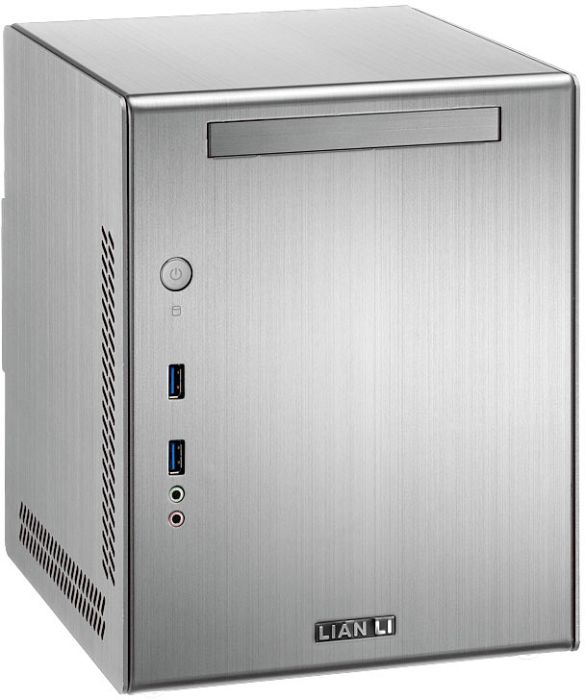

PC-Q03 - Mini Tower, Mini-ITX /Mini-DTX, Aluminum, 1.57kg The case is also available in silver with an 'A' tacked on to the end of the name - PC-Q03A. It's also rather astonishing just how light the chassis is - empty it weighs in at a mere 1.57kg.

Accessing the inside of the case is a doddle - the two side panels simply clip into place - and when it comes to removable items to help the build, the PC-Q03 puts many a full-size case to shame.

The motherboard tray, hard drive cage and the optical drive cage can all be completely removed from the chassis itself. Sadly though, the hard drive cage is the only tool free item - the rest need a screwdriver.

Two PSU brackets are supplied (held in place by thumbscrews), which allow either an SFX or ATX power supply to be fitted, but there is a 160mm length limit to keep in mind when choosing a power supply.

Similarly, there is a 180mm length restriction to the graphics card you can fit into the case. Full length cards then are unfortunately off the menu for the Lian Li.
