Cooling
| Maximum bottom fans |
2 |
| Maximum top fans |
2 |
| Rear fans diameters supported |
80 mm |
| Maximum rear fans |
2 |
| Bottom fans diameters supported |
120 mm |
Design
| Maximum graphics card length |
320 mm |
| Side window |
Y |
| Number of 3.5" bays |
2 |
| Type |
PC |
| Maximum PSU length |
220 mm |
| Maximum CPU cooler height |
130 mm |
| Form factor |
Mini-Tower |
| Number of expansion slots |
2 |
| Number of 2.5" bays |
2 |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
PC-Q37 - Mini Tower, Aluminum/Tempered Glass, 3.5" HDD x2, 6.35 cm (2.5 ") HDD x2, Mini-ITX, USB3.0 x2, HD Audio, 5.25kg

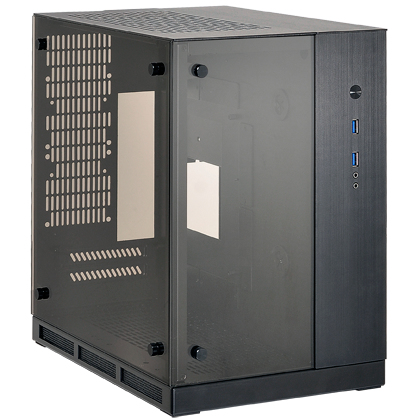

The PC-Q37 boasts beautiful tempered glass and brushed aluminum panels. Adopting the latest SFX-L PSU standard, the PC-Q37 has slimmer proportions than our previous dual-chambered cases: a mini tower rather than a cube chassis. This makes a beautiful showcase for high-end PC builds without taking up too much deskspace.
Like its big brothers the PC-O9 and PC-O10, the PC-Q37 is split into two compartments to make tidy builds a breeze. The main compartment mounts the motherboard, expansion cards, and cooling equipment; the back compartment hides the PSU and drive racks. This layout allows builders to highlight their best bits with oversized tempered glass, while effortlessly keeping wires and unsightly components tucked away.
The PC-Q37 is a mini tower supporting Mini-ITX motherboards. Despite its compact size, it accommodates the largest VGA cards as long as 310mm on its two expansion slots. Users can install CPU coolers up to 120mm tall and PSUs as long as 220mm. The main compartment can house up to four 120mm fans on the top and bottom panels for an efficient bottom-to-top airflow or, alternatively, a radiator fitting 300mm x 120mm x 80mm. Why have big beautiful sheets of glass if there’s nothing exciting to show inside?
The back compartment hides a rubber vibration-dampening drive rack supporting one 2.5” and two 3.5” drives. The front IO panel includes two USB 3.0 and HD audio ports, with headers tucked aside in the PSU and drive compartment, keeping the main compartment unfettered and wire-free at the get-go. Like the O-series, the PC-Q37 features an all-aluminum and tempered glass construction with removable, washable mesh filters on the fan intake mounts.
