Power supply
Power supply |
540 W |
Power supply included |
Y |
Power supply location |
Bottom |
PCI Express power connectors (6-pin) |
2 |
Design
Form factor |
Rack |
Number of 5.25" bays |
2 |
Number of expansion slots |
3 |
Side window |
N |
Cooling
Rear fans diameters supported |
80 mm |
Rear fans installed |
1x 80 mm |

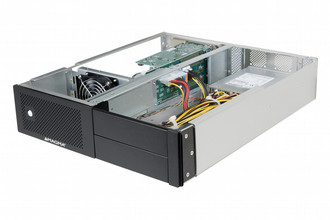

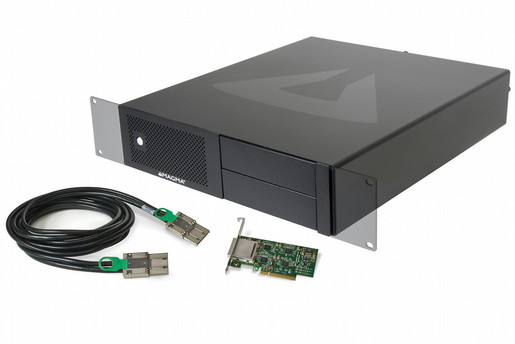

ROBEN-3PX2, 3 PCIe 2.0 x8, Aluminum
Precision engineered to Magma’s ‘mission critical’ standards for performance and reliability, the ROBEN-3PX2 features iPass, three (3) full-length, full-height PCIe slots and flexibility with two customer configurable 5.25” expansion bays. The rack-mountable aluminum chassis was designed for integrated removable storage expansion, a 540-watt power supply, auxiliary power, and features Magma’s exclusive Quiet Temperature Controlled (QTC) cooling.
The ROBEN-3PX2 is compatible with a series of operating systems, including MacOS, Windows, Linux, and Solaris.
Unleash your full creative capacity by adding a host of specialty PCIe cards to any computer with an available PCIe slot, and achieve amazing performance in any workstation configuration. ROBEN-3PX2’s patented performance optimizing backplane seamlessly integrates PCIe expansion to ensure that all devices installed in the system operate with the maximum possible speed, and minimum potential for data loss.
With iPass and blistering-fast card-to-card communication, the ROBEN-3PX2 is the top choice for serious creative professionals seeking to capture the dynamic power of their system’s computing capabilities.
Three (3) available full length/full height expansion slots
Tool-less cover removal
White power-on indicator front panel light
One 80mm 33.4 CFM Expansion Card/Backplane Fan
Variable speed thermistor control option (or full speed)
Speeds up to 40Gbps (PCIe x8 Gen 2)
The ultimate sidekick for all your creative needs
Benefits:
Attach PCIe cards to any computer
Extension of PCI Express signals outside the computer
Daisy-chain or end-point device
Features:
Easy Plug and Play installation
Use any combination of x1, x4, x8 and x16 PCIe cards
QTC cooling
Auxilary power cables
540-watt power supply
