Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
4 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| Number of SATA III connectors |
4 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
BIOS
| BIOS type |
UEFI |
| Clear CMOS jumper |
Y |
Performance
| Component for |
Mini PC |
| Motherboard chipset family |
AMD |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
| DVI-D ports quantity |
1 |
Graphics
| Maximum graphics adapter memory |
2048 MB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Chipset |
AMD A68H |

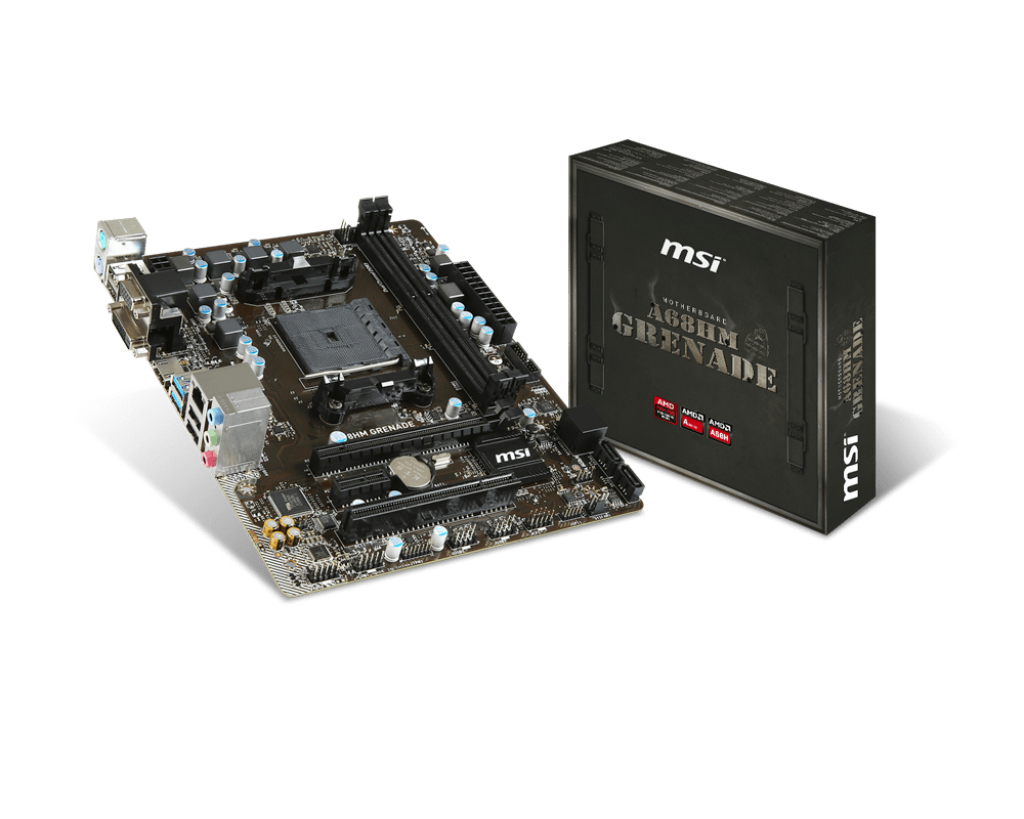

AMD Socket FM2+ A-Series/Athlon, 2 x DDR3 1333/1600/1866/2133MHz max. 32GB, 1 x PCI-Ex16 3.0, 1 x PCI-Ex1 2.0 , 1 x PCI, 4 x SATAIII 6Gb/s, 1 x HDMI, 1 x DVI-D, 1 x VGA, Gigabit Ethernet, M-ATX
<b>Military Class 4</b>
Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.
<b>Dark Choke</b>
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
<b>SOLID CAP</b>
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
<b>Military Class essentials</b>
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
<b>Humidity Protection</b>
The latest Gen 4 Fabric PCB helps to against moisture cause by some humid conditions and environments.
<b>EMI Protection</b>
The optimized EMI-proof design helps to keep users safe when during a long-time computer operation.
<b>ESD Protection</b>
Anti-ESD ICs and fuses onboard helps to totally protect your motherboard from electrostatic damage.
<b>HIGH Temperature Protection</b>
Certificated Military Class 4 components help to work stable under some extreme conditions.
<b>CLICK BIOS 4</b>
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8.1. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.
<b>LIVE UPDATE 6</b>
MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.
<b>M-Flash</b>
Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
Backup/Restore Your BIOS to/from Any USB Flash Disk
Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process
<b>USB 3.0</b>
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
<b>SATA 6Gb/s</b>
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.
- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs
<b>USB Safeguard</b>
USB Safeguard can prevent motherboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the motherboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan.
- All MSI motherboards use USB Safeguard’s anti-ESD chip for thorough protection against ESD damage
- USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply
<b>Winki 3</b>
Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time.
- User friendly & totally free applications
- Power on to run applications in 25 seconds
- Multi-language interface support
<b>HDMI</b>
Enjoy the awesome HD video playback now! MSI motherboards that equip with HDMI port(s) supports the latest and the most innovative signal outputs to provide an unprecedented visual experience.
