Internal I/O
Serial port via internal header |
Y |
USB 2.0 connectors |
1 |
ATX Power connector (24-pin) |
Y |
Power fan connector |
Y |
TPM connector |
Y |
USB 3.0 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
6 |
EPS power connector (8-pin) |
Y |
CPU fan connector |
Y |
Chassis intrusion connector |
Y |
Front panel audio connector |
Y |
Serial port headers |
1 |
Parallel port via internal header |
Y |
Performance
Motherboard form factor |
ATX |
Linux operating systems supported |
Y |
Motherboard chipset family |
Intel |
Component for |
PC |
Memory
Supported memory clock speeds |
2133 MHz |
ECC |
Y |
Unbuffered memory |
Y |
Supported memory types |
DDR4-SDRAM |
Memory channels |
Dual |
Memory slots type |
DIMM |
Number of memory slots |
4 |
Maximum internal memory |
64 GB |
BIOS
BIOS memory size |
128 MB |
BIOS type |
UEFI AMI |
Clear CMOS button |
Y |
Clear CMOS jumper |
Y |
Expansion slots
PCI slots |
2 |
PCI Express x16 (Gen 3.x) slots |
2 |
PCI Express x1 (Gen 3.x) slots |
2 |
Back panel I/O ports
USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
PS/2 ports quantity |
2 |
Headphone outputs |
1 |
Microphone in |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
3 |
Additionally
Chipset |
Intel C232 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

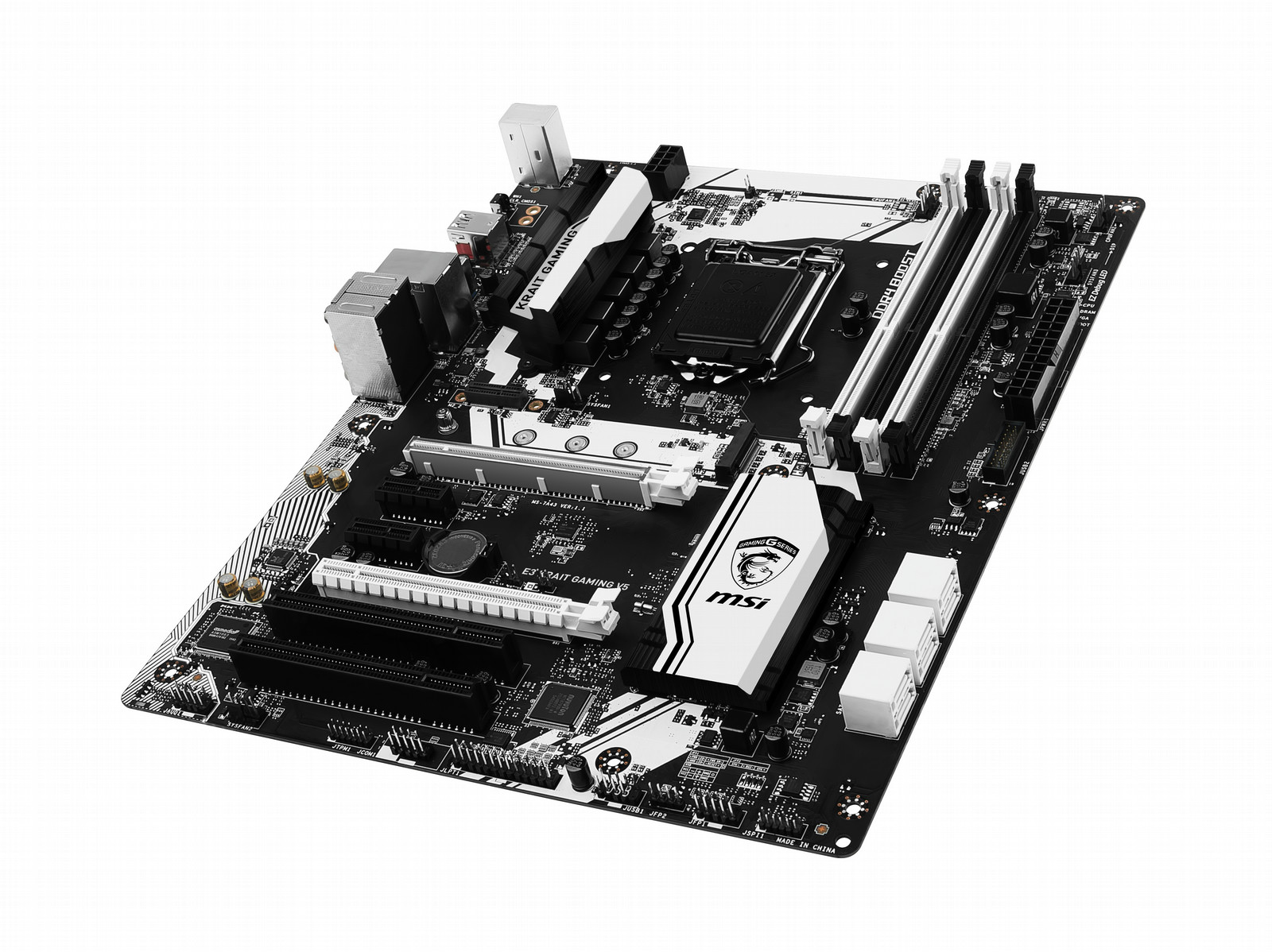

Socket LGA1151, Intel C232 Chipset, 4 x DDR4 up to 64GB, 1 x Gigabit Ethernet, 6 x SATA, 2 x PCI-Express x16, 2 x PCI-Express x1, 2 x PCI, 1 x M.2
GAME IN STYLE
Each game demands different skills, each gamer selects, customizes and levels their own gaming character. Why stop there? MSI Performance GAMING motherboards allow you to fully customize & personalize your gaming PC to any color you want while delivering top performance for a great gaming experience.
UNMATCHED MEMORY PERFORMANCE AND STABILITY
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
An added XMP LED highlights an active Extreme Memory Profile for the best memory speed and stability setting.
DOMINATE THE GAME WITH LOWEST LATENCY
Get ready to crush your enemies on the battlefield with MSI® GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag.
DEDICATED GAMING LAN WITH INTEL®
Experience a more fluid game with Intel® i219 LAN. Intel® i219 LAN is designed to deliver high performance when gaming, delivering more throughput than other solutions.
Intel® i219 LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This way, your CPU can be used more effectively and you can enjoy more FPS when gaming.
GAMING OPTIMIZED BANDWITH MANAGEMENT
Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.
MSI GAMING LAN MANAGER
- Automatically prioritizes games above other applications
- Allows you to change applications' traffic priority
- Allows you to customize bandwidth for each application
STUDIO GRADE SOUND WITH AUDIO BOOST
With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.
- 7.1 Audio Jacks
- Isolated Audio PCB
- Chemi-Con Audio Capacitors
- Front Dedicated Headphone Out
- Separated Audio Layers
- Anti-popcorn Noise
GAMING HOTKEY
Gaming Hotkey enables more functionality using your own keyboard. Simply assign functions to any key and launch your favorite games, load overclocking profiles or do real-time overclocking with the push of a single button. The possibilities are endless!
- Customize any shortcut on your keyboard
- User friendly, easy to use application
- 1 key load up of your favorite game
TOTAL FREEDOM, MAXIMUM EASE
Easily program your most used commands to be executed with a single keystroke. You are free to choose any key you want.
Shortcut Hotkeys
Assign your own keyboard special functions
Windows keys
Quick launch any application or folder
MSI® Smart keys
Quick launch of mail, browser or more
Login Keys
One press to login (program passwords)
MSI USB 3.1 GEN1
Transfer your favorite games, music and movies over Type-C connector more convenient than ever. USB 3.1 Gen1 enables lightning-fast transfer speeds up to 5Gb/s!
- 10X faster than USB 2.0
- Up to 5Gbps data transfer bandwidth
- Boost transfer rate for your PC and peripherals
Type-C with reversible design
Get all the performance benefits from USB 3.1 Gen1 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.
2X FRONT USB 3.1 GEN1
With a clever placed USB 3.1 Gen1 front pin header, available on MSI motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports on the rear.
PUSH YOUR SSD HARDER WITH M.2
M.2 doesn’t need any power- or signal-cables and with a very small footprint M.2 is the storage connector of the future replacing traditional HDDs/SSDs.
TURBO U.2 HOST CARD (OPTIONAL)
The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overcurrent protection prevents overcurrent and short-circuit damage of the CPU and other components. There shows a warning message let’s you know that overcurrent protection is activated for easier troubleshooting.
EASY DIAGNOSTIC
MSI EZ DEBUG LED is an easy troubleshooting tool built with 4 LEDs to indicate to CPU / Memory / VGA / Boot operation every time you boot up your system.
Run into trouble? Use the LEDs to easy identify the item causing problems.
STEELSERIES CERTIFIED
Get ready to enjoy the best gaming experience with MSI & SteelSeries!
Enthusiast gaming gear brand SteelSeries has officially approved MSI GAMING motherboards as ‘SteelSeries Certified (SSC)’. This certification is based on the performance demands and stability of MSI GAMING motherboards and SteelSeries products. Your SteelSeries headset, mouse and other top quality gaming gear works best on MSI GAMING motherboards.
GAMING CERTIFIED
Our GAMING motherboards are tested in our gaming lab, internet cafes and together with the world’s best eSports players to make sure you get top performance and reliability in the world’s most popular games. Through 24-hour on- and offline game testing, MSI ensures the onboard network configuration, audio reception and FPS performance are tested and tuned to perfection for you to enjoy the best possible gameplay experience.
Only the motherboards that pass this test receive the GAMING CERTIFIED status and are considered true MSI® GAMING motherboards.
MILITARY CLASS 4 COMPONENTS
DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
DARK CAP
With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year Lifespan.
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
HIGH TEMPERATURE
PROTECTION
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our GAMING motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.
OPTIMIZED FOR MULTIPLE GRAPHICS CARDS
CROSSFIRE SUPPORT
This motherboard supports CrossFire. Optimal PCI-Express slot placement allows for better fitting and airflow.
That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD CrossFire™ setup.
PREVENT DAMAGE!
Worried about damaging the PCI-Express slot or your graphics card because of the weight?
MSI® STEEL ARMOR
Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free gaming experience and higher GPU overclocking.
OTHERS
NO STRENGTHENING
MSI® STEEL ARMOR
REINFORCED, HEAVY SOLDERED CONNECTIONS
THE ALL NEW, AWARD-WINNING CLICK BIOS 5
Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance to get the most out of your games. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.
Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance.
- Variety of options to boost your game performance
- Next gen UEFI BIOS with award winning design
- High-resolution multi language scalable font
- Easy to use
- Advanced overclocking
GAMING DEVICE PORT
MSI Gaming Device Port is optimized to deliver the best connectivity for high end gaming mice to fully utilize its speed. You can customize your mouse’ DPI to change accuracy and program macro combinations using the easy to use Mouse Master software to perform multiple commands with just one click.
Gaming benefits
- More responsive, faster reactions
- Customizable mouse settings
- Customizable mouse accuracy (DPI)
- Program macros for multiple actions in 1 click
- Smoother gameplay
Technical benefits
- 3x more gold than regular connectors
- 10x longer lifetime when plugging/un-plugging
- Prevents oxidation
OBS STREAMING SOFTWARE
Share your gaming achievements with the world! Open Broadcaster Software (OBS) is world’s most popular open source software for video recording and live streaming. Show your friends your gaming progress live.
Plenty of plugins
Allowing developers to create their own unique plugins and complete control of their streaming experience.
Optimized video quality
OBS records videos using small file size,but with perfect image and sound quality, without lag.
Easy to share
Live streaming to your favorite video sharing websites such as Twitch, YouTube, DailyMotion, Hitbox and many more.
Webcam supported
OBS supports almost any webcam. DirectShow capture device support (webcams, capture cards, etc).
Multiple profiles
Add different profiles, each of them with its own settings. Easy to use OBS for anyone, in any situation.
Plenty of plugins
Allowing developers to create their own unique plugins and complete control of their streaming experience.
Optimized video quality
OBS records videos using small file size,but with perfect image and sound quality, without lag.
OVERCLOCKING MADE EASY
Outperform your competition with the MSI® GAMING APP which allows simultaneous control of both your Graphics Card's overclocking.
ON-SCREEN SPEED & TEMPERATURES
Real-time monitor GPU Core, DRAM Frequency, GPU & CPU Temperatures and much more, in game or in other fullscreen applications, customizable to your preference.
A DIFFERENT VIEW
ON GAMING
MSI Dragon Eye allows you to watch a YouTube video or Twitch Stream while playing a game simultaneously. Simply add a link or stream to the Dragon Eye application and select the size, position, volume and transparency and start gaming. With a few hotkeys you can start/pause your video or set the volume.
CPU-Z MSI GAMING EDITION
MSI has worked closely with CPUID to develop this special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information on the main devices of your system, such as your CPU speed, Memory speed and timings, motherboard BIOS version and much more.
SSD NOT FAST ENOUGH? TRY MSI RAMDISK!
Get an unlimited RAMDisk for free (worth $35) with MSI GAMING motherboards. RAMDisk allows you to create a virtual drive from your system memory, enabling speeds up to 25x faster than a modern SSD. You can load complete games, speed up your browser or your page file significantly increasing system performance! You even increase your SSD's lifespan by using RAMDisk as it reduces unnecessary read and write operations to your SSD.
- Speed up system performance
- Speed up games, apps and browser
- Increase SSD lifespan
