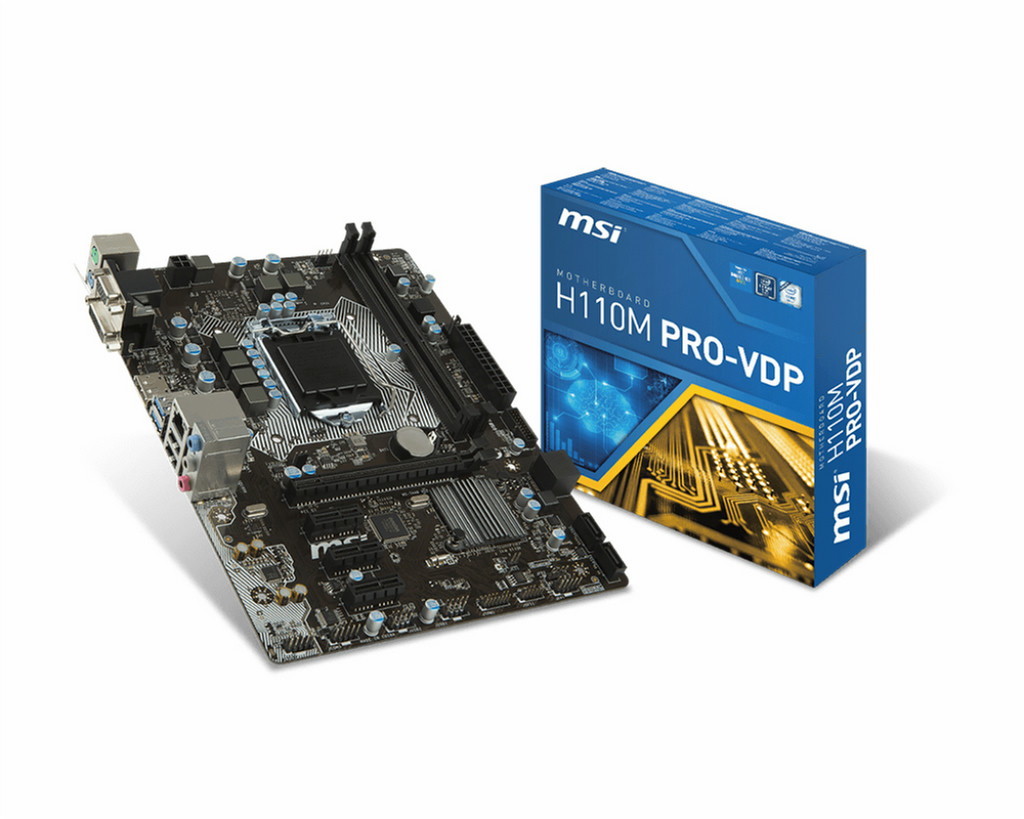

MSI H110M PRO-VDP Intel H110 LGA1151 Micro ATX motherboard

MSI H110M PRO-VDP Intel H110 LGA1151 Micro ATX motherboard

MPN: 007A48-001R
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor Micro ATX
Motherboard chipset family Intel
Intel Extreme Memory Profile (XMP) Y
Audio system Realtek ALC887
Component for PC

Memory

Supported memory clock speeds 2133 MHz
Non-ECC Y
Unbuffered memory Y
Supported memory types DDR4-SDRAM
Memory channels Dual
Memory slots type DIMM
Number of memory slots 2
Maximum internal memory 32 GB

BIOS

BIOS memory size 16 MB
BIOS type UEFI AMI
Clear CMOS jumper Y
ACPI version 5.0

Internal I/O

USB 2.0 connectors 2
ATX Power connector (24-pin) Y
TPM connector Y
USB 3.0 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
CPU fan connector Y
Chassis intrusion connector Y
Number of chassis fan connectors 1
Front panel audio connector Y
Serial port headers 1
Front panel connector Y
12V power connector Y

Graphics

DirectX version 12.0

Back panel I/O ports

DVI-D ports quantity 1
PS/2 ports quantity 2
Headphone outputs 1
Microphone in Y
DisplayPorts quantity 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2
VGA (D-Sub) ports quantity 1

Expansion slots

PCI Express x1 (Gen 2.x) slots 3
PCI Express x16 (Gen 3.x) slots 1

Processor

Intel Core i3/i5/i7 series i3-6xxx, i5-6xxx, i7-6xxx

Additionally

Chipset Intel H110
Ethernet LAN connection Y
Ethernet LAN (RJ-45) ports quantity 1
MSI H110M PRO-VDP. Supported memory types: DDR4-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 2133 MHz. Processor family: Intel, Compatible processor series: Celeron,Core i3,Core i5,Core i7,Pentium, Processor socket: LGA 1151 (Socket H4). Supported storage drive interfaces: Serial ATA III. LAN controller: Realtek RTL8111H, Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard chipset family: Intel, Motherboard chipset: Intel H110
