Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Trusted Platform Module (TPM) |
Y |
| Audio system |
Realtek ALC887 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
2 |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
11 |
| Maximum graphics adapter memory |
1760 MB |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
Other features
| Number of processors supported |
1 |
| Processor front side bus |
100 MHz |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 (Gen 2.x) slots |
1 |
Processor
| Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
Additionally
| Chipset |
Intel H81 |
| Количество слотов PCI Express |
2 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

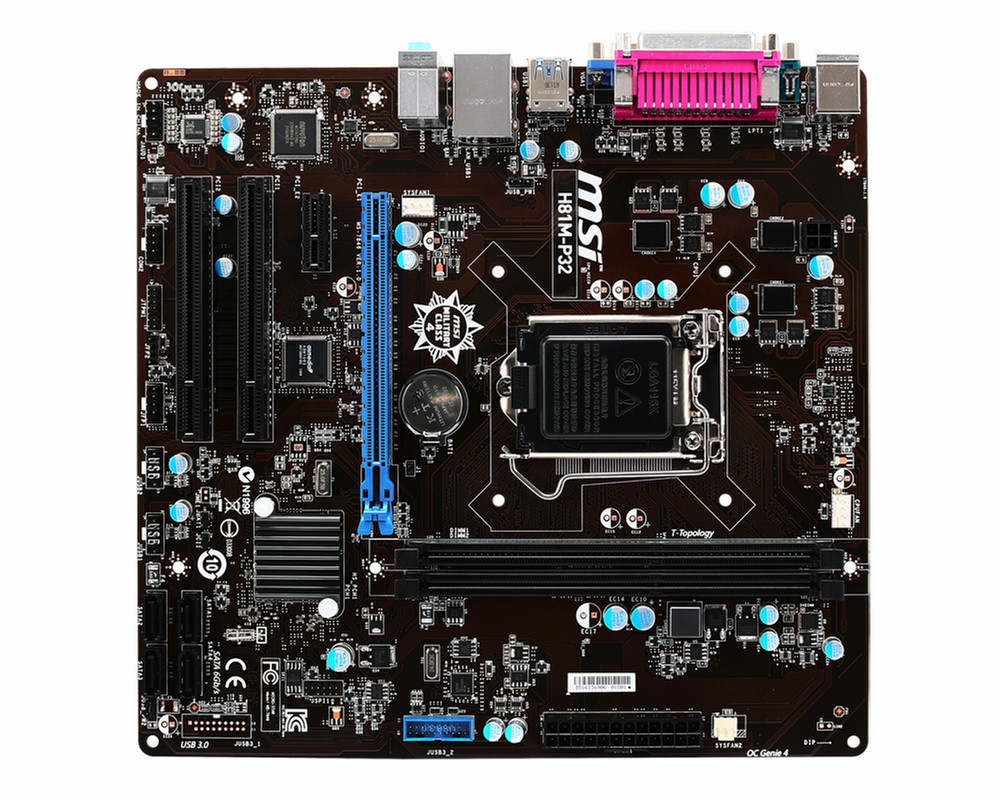

H81M-P32, LGA 1150, H81, 2x DIMM, SATAII/SATAIII, USB 3.0, Gigabit LAN
Military Class Essentials
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
OC Genie 4
OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate.
USB 3.0
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
Features
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
SATA 6Gb/s
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.
Features
- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs
Live Update 5
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving your time and lowering the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.
Features
- Automatically Detect the BIOS/Driver/VGA/Utility Update
- Support Microsoft Windows XP/Vista/7 32/64bit
