Internal I/O
| USB 2.0 connectors |
1 |
| Number of SATA connectors |
2 |
| Number of chassis fan connectors |
1 |
| Serial port headers |
1 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
Performance
| Component for |
PC |
| Audio system |
ALC887 |
| Motherboard chipset family |
Intel |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Headphone outputs |
3 |
| PS/2 ports quantity |
2 |
| DVI-D ports quantity |
1 |
Memory
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
| Memory slots type |
SO-DIMM |
| Memory channels |
Dual |
Expansion slots
| PCI Express x1 slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
Graphics
| Maximum graphics adapter memory |
2048 MB |
| DirectX version |
11.1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

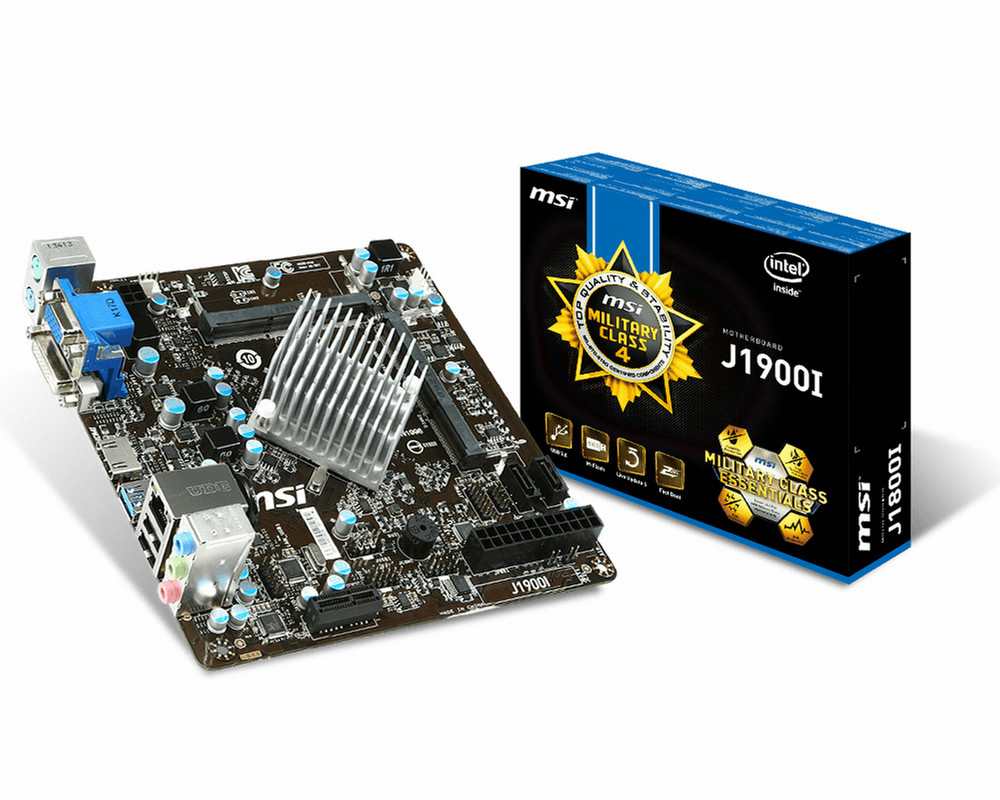

Intel Celeron J1900, 2 x DDR3 SO-DIMM, DDR3, 1333/1066 MHz, PCI Express 2.0 x1, PS/2 x 2, VGA, DVI-D, HDMI, USB 3.0, LAN, 2 x USB 2.0, Mini-ITX
<b>Military Class Essentials</b>
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
<b>Military Class 4</b>
MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components.
<b>USB 3.0</b>
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
Features
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
<b>HDMI</b>
Enjoy the awesome HD video playback now! MSI motherboards that equip with HDMI port(s) supports the latest and the most innovative signal outputs to provide an unprecedented visual experience.
<b>Fast Boot</b>
No more waiting for entering O/S! MSI Fast Boot helps to make motherboards boot lightning fast. MSI also adds the GO2BIOS button with-in. Simply click it to reset your PC and then go straight to the system BIOS.
<b>Live Update 5</b>
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving your time and lowering the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.
<b>M-Flash</b>
Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
