Performance
| Motherboard form factor |
Micro ATX |
| Supported processor sockets |
LGA 1155 (Socket H2) |
| Motherboard chipset family |
Intel |
| Audio system |
VIA VT1708S |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Flash memory |
32 MB |
| Maximum internal memory |
16 GB |
Processor
| Maximum number of SMP processors |
1 |
BIOS
| BIOS type |
UEFI |
| ACPI version |
2.0a |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Number of SATA II connectors |
4 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
| PCI Express slots version |
2.0 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel H61 |
| Maximum memory |
16384 MB |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

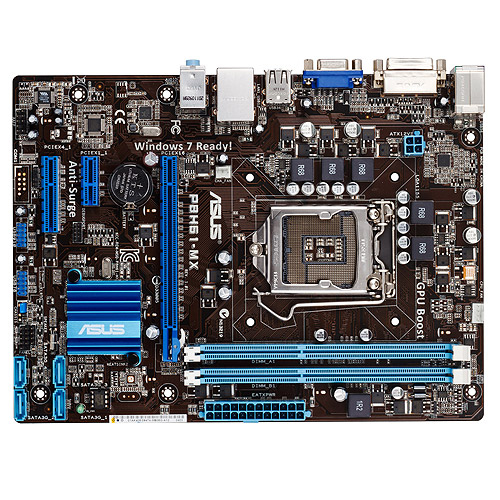

P8H61-MX - Socket 1155, 2x DDR3 DIMM (max. 16GB), Intel H61(B3), 1x PCIe 2.0 x16, 1x PCIe 2.0 x1, 1x PCIe 2.0 x4, 4x SATA II, Gigabit Ethernet, 32Mb Flash ROM, uATX
LGA1155 socket for Intel® Second Generation Processors
This motherboard supports the Intel® second generation processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation processors are among the most powerful and energy efficient CPUs in the world.
Intel® H61(B3) Express Chipset
The Intel® H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.
GPU Boost
GPU Boost overclocks the integrated GPU in real time for the best graphics performance. User-friendly UI facilitates flexible frequency and voltage adjustments. Its ability to deliver multiple overclocking profiles also provides rapid and stable system-level upgrades.
Dual-Channel DDR3 1333 / 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
Anti-Surge Protection
Protect Your Device Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.
1. Real-time over voltage detection.
2. Active protection against potential damage to your motherboards and systems.
AI Suite II
With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
ASUS UEFI BIOS (EZ Mode)
Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
8-channel high definition audio
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks.
ErP ready
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
