Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| Parallel connector |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
4 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| Parallel port via internal header |
Y |
Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Trusted Platform Module (TPM) |
Y |
| PC health monitoring |
CPU, FAN, Temperature |
| Processor with Intel Graphics Technology required |
Y |
| Audio system |
Realtek ALC892 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1066, 1200, 1300, 1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
Processor
| Maximum number of SMP processors |
1 |
BIOS
| BIOS type |
UEFI |
| Clear CMOS jumper |
Y |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
| HDCP |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
3 |
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express configurations |
1x4, 1x16 |
| PCI Express slots version |
2.0, 3.0 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel Z87 |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics |
| Dual-link DVI |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

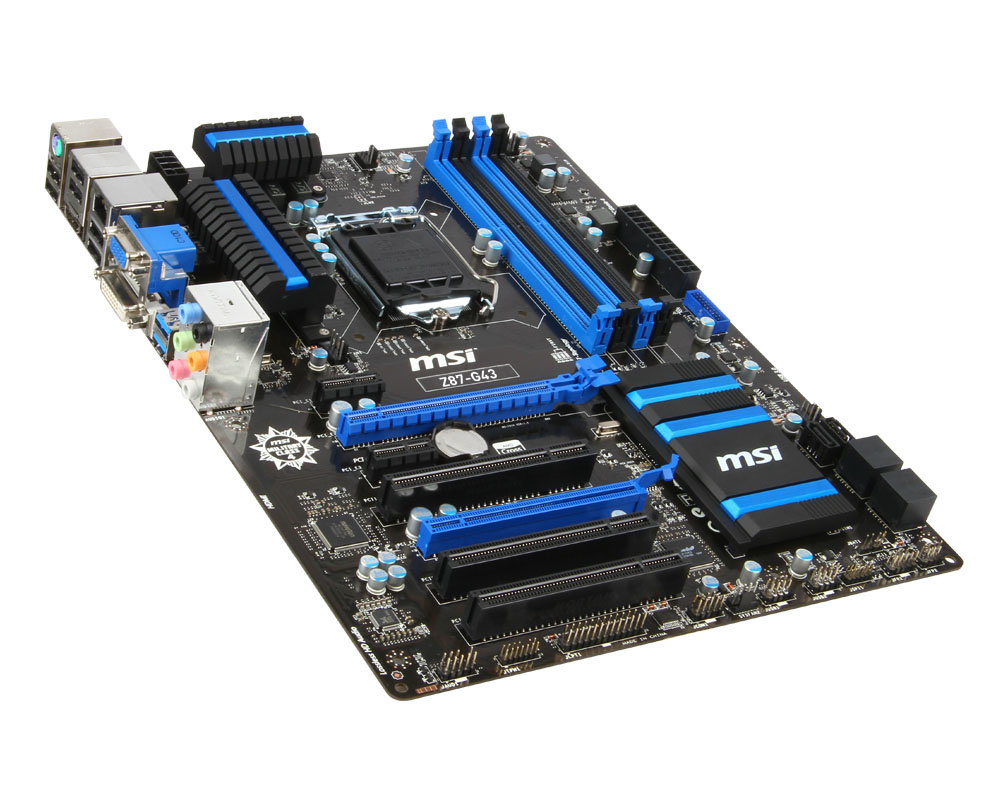

Z87-G43, LGA 1150, Intel Z87, 4 x DDR3 3000-1066MHz, Intel HD Graphics, 2 x PCI Express x16 (2-Way AMD CrossFire), 6 x SATA 6.0Gb/s, Realtek 8111E GbE LAN, EFI BIOS, ATX
- Supports 4th Gen Intel® Core™/Pentium®/Celeron® processors for LGA 1150 socket.
- Supports DDR3-3000(OC) Memory.
- USB 3.0 + SATA 6Gb/s.
- Military Class 4: Top Quality & Stability.
- Military Class Essentials: Total Protection for Military Class Motherboards.
- OC Genie 4: Overclock in 1 Second.
- Click BIOS 4: Easily Fine-tune Your System.
- 4K UHD Support: Ultra-high Definition Visual Experience.
- 3 Display Outputs: HDMI/DVI/D-Sub Support.
- PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand.
- Multi-GPU: AMD CrossFire Support.
- Sound Blaster Cinema: Realistic Surround Sound Experience.
- Command Center: Control & Customize Your PC Settings.
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds.
- Super RAID: Easily Setup & Configure Intel Technologies.
