Design
| Type |
PC |
| Maximum CPU cooler height |
185 mm |
| Maximum graphics card length |
445 mm |
| Side window |
Y |
| Form factor |
Midi-Tower |
| Number of expansion slots |
8 |
| Suitable for |
Gaming |
| Material thickness |
0.7 mm |
| Maximum PSU length |
200 mm |
| Number of 3.5" bays |
8 |
| Number of 5.25" bays |
3 |
| Number of internal 3.5" bays |
8 |
| Number of 2.5" bays |
8 |
Cooling
| Maximum rear fans |
1 |
| Maximum bottom fans |
1 |
| Maximum top fans |
2 |
| Maximum side fans |
1 |
| Side fans diameters supported |
140, 120 mm |
| Maximum front fans |
2 |
| Fan speed |
1300 RPM |
| Bottom fans diameters supported |
140, 120 mm |
| Front fans installed |
2x 120 mm |
| Liquid cooling capability |
Y |
| VGA fan duct |
N |
| Rear fans diameters supported |
120, 140 mm |
| Rear fans installed |
1x 140 mm |
Storage
| Hot-swap |
N |
| Number of hard drives supported |
11 |
| Card reader integrated |
N |
| Built-in HDD dock station |
N |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Other features
| Fan diameter |
120 mm |
| Noise level |
14.2 dB |
Power supply
| Power supply included |
N |
| Power supply location |
Bottom |
Ergonomics
| Transport wheels |
N |
| Reset button |
Y |
| Cable management |
Y |
Packaging data
| Handheld remote control |
N |
<b>We proudly present the next generation of PC cases: the Deep Silence 1.</b>
In accordance with current requirements, this innovative tower - as the foundation for a whole new line of future products - offers the perfect symbiosis of ideal system cooling and sensationally low noise levels – especially for the use of high-end PC-systems. Numerous test awards at home and abroad demonstrate this impressively.
Exquisite looks and timeless elegance characterize the appearance – the Deep Silence 1 is deliberately simple in design. Common controls were inconspicuously integrated into the exterior surface, maintaining the linear design flow. The high performance demands on a case of superior quality have been taken into account with the Nanoxia Deep Silence 1.
<b>Prominent features:</b>
- Classic design - Made in Germany
- Highly efficient, stealthy ventilation system
- Maximum functionality and adaptability
- Particularly quiet thanks to its integrated sound dampening system and focused design

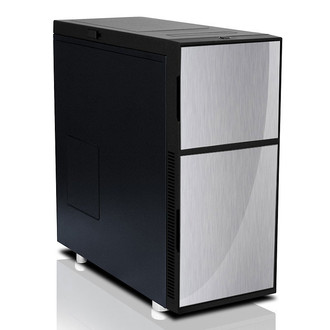

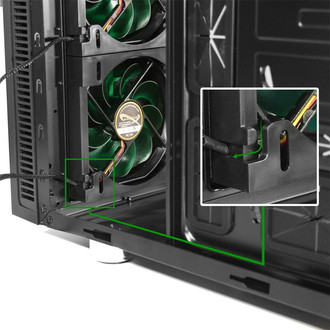

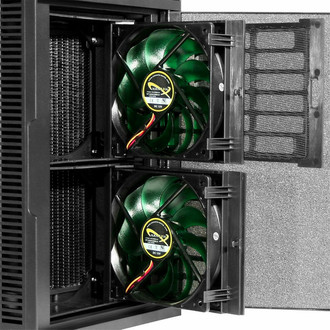

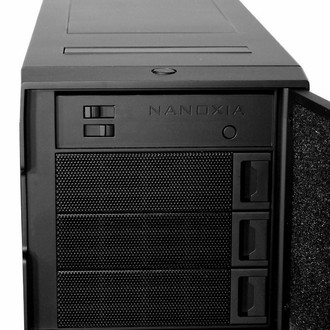

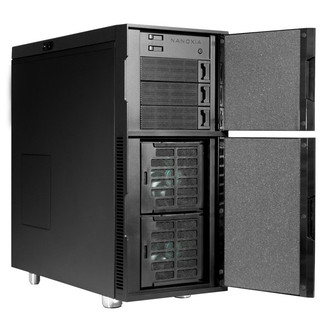

The front of the case is equipped with two soundproof doors: Behind the upper cover the user will find three 5.25 inch bays, a 2-channel fan control (with sliders), as well as the reset-button. Behind the second door, two low-noise 120 mm Nanoxia fans are mounted. Magnets integrated in the doors ensure a fast closing and easy opening.

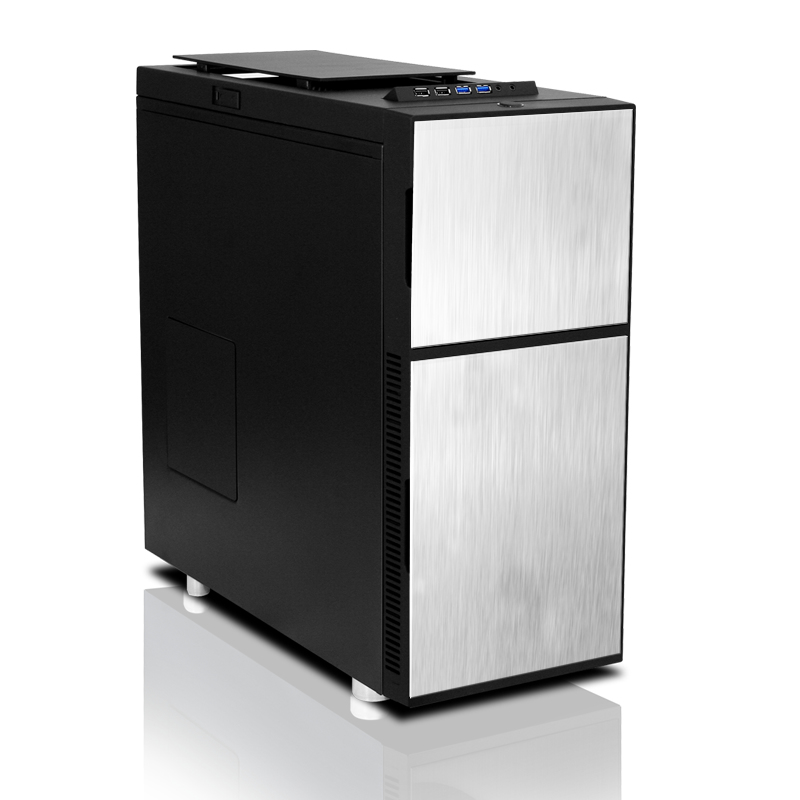

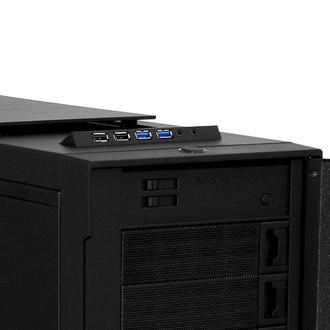

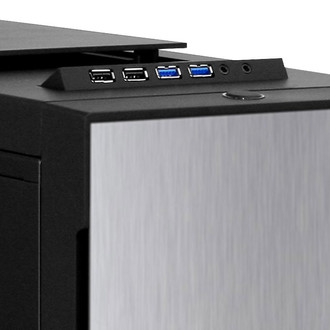

The I/O-panel can be found on the top cover of the case with 2 x USB 3.0, 2 x USB 2.0, Mic, and Audio connectors available. The panel can easily be embedded in the cover if the connectors are not needed. The cover also mounts the unique Nanoxia Air Chimney for effective case ventilation. Again, this is easily retractable. This ensures that the simple look of the case is maintained, without sacrificing useful features and options for ventilation.
The side panel offers the opportunity to install a 120 or 140 mm side fan. The opening is closed by a succinct, square fan cover so as to preserve the uniform appearance of the case.
