Design
| Supported motherboard form factors |
ATX, EATX, Micro-ATX, Mini-ATX |
| Number of 3.5" bays |
2 |
| Side window |
Y |
| Number of 2.5" bays |
2 |
| Maximum graphics card length |
395 mm |
| Maximum CPU cooler height |
160 mm |
| Maximum PSU length |
270 mm |
| Illumination |
Y |
| Anti-dust filter |
Y |
| Number of expansion slots |
7 |
| Form factor |
Midi-Tower |
| Type |
PC |
Cooling
| Top fans diameters supported |
120, 140 mm |
| Maximum front fans |
3 |
| Rear fans diameters supported |
120 mm |
| Maximum rear fans |
1 |
| Maximum top fans |
2 |
| Rear fans installed |
1x 120 mm |
| Liquid cooling capability |
Y |
| Front radiator fan sizes supported |
120, 140, 280, 360 mm |
| Front fans installed |
1x 120 mm |
Ergonomics
| Reset button |
Y |
| Cable management |
Y |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Midtower, ATX/Micro ATX/Mini ITX/E-ATX, 2x USB 3.0, fan controller, 210 x 465 x 470 mm, steel, ABS, glass, black

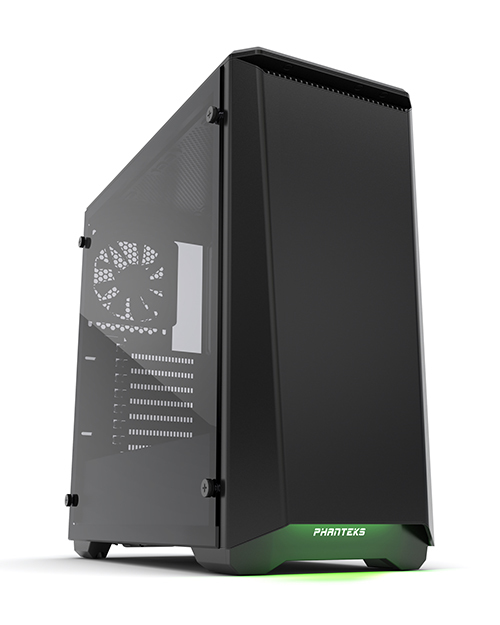

nonl2brPhanteks budget-friendly Eclipse P400S now sports an all new tempered glass side panel. The new variant of the Eclipse Series still features the solid build quality built-in RGB lighting controller open interior design compatibility with all-in-one liquid cooling. The P400S retains the 3 speed fan controller and noise deadening material for a more silent build. The tempered glass side panel of the Eclipse P400S offers elegance and style to your system build.
The Phanteks Eclipse P400S can support 360mm radiators 395mm VGA cards 160mm CPU coolers and up to 270mm PSU's for impressive compatibility with enthusiast level hardware. The Phanteks Eclipse range are also fully compatible with the new Asus Aura RGB motherboard range and through use of the Phanteks RGB LED adapter cable (sold separately) it can be synchronised with the Aura software to control both interior and exterior RGB functionality.
The Phanteks Eclipse P400S range represents outstanding value for money combining a host of attractive features with a extremely well built and aesthetically pleasing structure at a pricepoint that commands attention.
Features
- Full Metal Body
- Tempered Glass Side Panel
- 300mm Phanteks RGB LED Strip Included
- Clean interior - Featuring a PSU shroud
- Soundproofing Panels + Top Covers
- Fully equipped with dust filters
- Ready for AIO Watercooling - Supports up to 360mm radiators.
- Equipped with 2 x 120mm fans
- 25 mm cable management space + additional cable compartment in bottom along with Phanteks Velcro cable ties
- Front I/O (Hidden) - 2 x USB3.0 Headphone Mic LED Control Reset 3-Speed Fan Controller
- RGB Power Light + Ambient Down Light choose from 10 different colours compatible with Phanteks RGB LED Strips
Specification
- Dimension: 210 mm x 465 mm x 470 mm (W x H x D) 8.3 in x 18.3 in x 18.5 in
- Form Factor: Midtower
- Material(s): Steel chassis steel exterior ABS Tempered Glass side panel
- Colour: Black
- Motherboard support: ATX Micro ATX Mini ITX E-ATX *(up to 272mm wide cannot use rubber grommets)
- Front I/O: 2x USB 3.0 Mic Headphone Reset RGB LED control
- Side window: Yes
- Soundproofing Panels: Yes Front/Top/Right Side
- Expansion slots: 7
- Internal 3.5: 6x (2x included)
- Internal (dedicated): 2.5 2x (2x included)
- Cooling: Front - 120mm Fan x 3 (1 included) 140mm Fan x 2 Top - 120mm Fan x 2 140mm Fan x 2 Rear - 120mm Fan x 1 (included)
- Liquid Cooling: Front - Up to 360mm (with removal of midplate cover) or 280mm (without removal) Rear - 120mm
- GPU Clearance: 395mm 280mm (with optional HDD brackets installed)
- CPU Cooler: 160mm
- Cable Management: 25mm
- PSU (including cable): 270mm
- Model: PH-EC416PSTG_BK
- Net Weight: 7 kg (15.4 lbs)
- Gross Weight: 8 kg (17.6 lbs)
- Package Dimension: 300 mm x 555 mm x 520 mm (WxHxD) 11.8 in x 21.9 in x 20.5 in
- Warranty: 5 Years
