Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000Mbps |
| Switching capacity |
10 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Throughput |
7.44 Mpps |
Networking
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Y |
| Flow control support |
Y |
| 10G support |
N |
Power
| Power consumption (typical) |
4.4 W |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| DC-in jack |
Y |
Operational conditions
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
Weight & dimensions
| Depth |
86 mm |
| Weight |
360 g |
| Width |
155 mm |
| Height |
26 mm |
Design
| Certification |
FCC, CE |
| Rack mounting |
N |
Protocols
| Supported network protocols |
CSMA/CD |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Colour of product |
Black |
| Jumbo Frames support |
Y |
| Operating temperature range (T-T) |
0 - 50 °C |

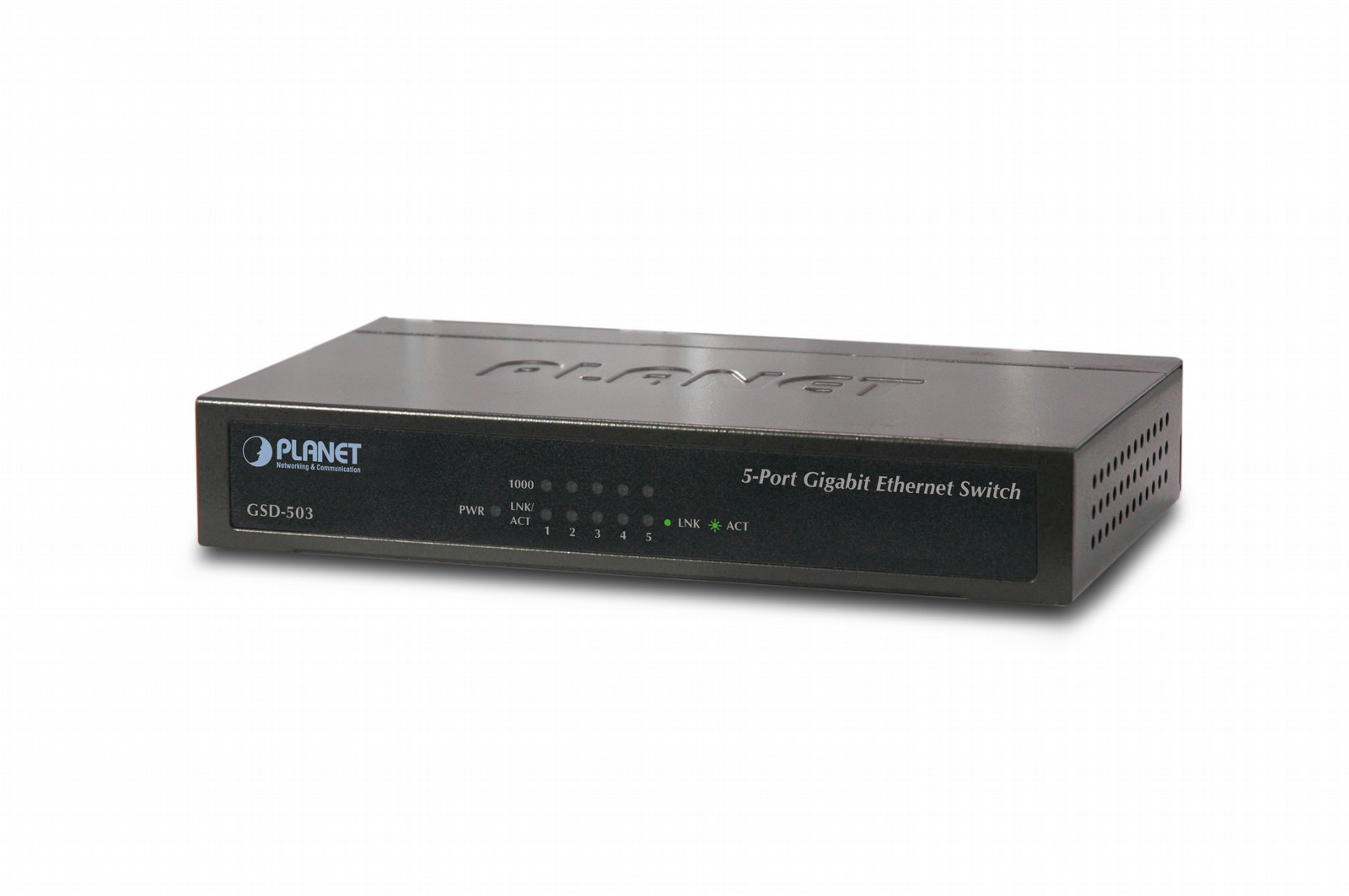

GSD-503 - 5-Port 10/100/1000Mbps, Auto MDI/MDIX, 8K MAC, 10Gbps, 4.4 W, 360 g
With concepts of "Easy to Install and use", "Compact-sized design", and "Simple troubleshooting", PLANET GSD-503 provides cost-conscious business and home users an integrated system of small-office / home-office networking. The GSD-503 is the fancy-shape standard metal model and just right for your network in compact housing and deployment.
The GSD-503 has 8K MAC Address table and 10Gbps non-blocking switch fabric. It offers wire-speed packets transfer performance without risk of packet loss. All RJ-45 copper interfaces in the GSD-503 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. It also supports standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
The Flow Control function in the GSD-503 allows routers and servers to directly connect to it for fast and reliable data transfer. The Gigabit ports with 9K jumbo frame feature can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
The GSD-503 Gigabit Ethernet Switch is a simple, cost-effective, and highly reliable network Switch and is the ideal device for bridging Ethernet to Gigabit Ethernet workgroups or networks. To segment the network and ease the network traffic, the 5 10/100/1000Mbps ports helps the SOHO switched networks become a friendly network backbone. Provides array LED indicators in the GSD-503, the network status can also be monitored at a glance.
Key Features
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standards
- 5-Port 10/100/1000Mbps Gigabit Ethernet ports
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
- IEEE 802.3x flow control for full duplex operation and Back pressure for half duplex operation
- Integrated address look-up engine, supports 8K absolute MAC addresses
- One power on/off button for energy saving
- Automatic address learning and address aging
- 9K Jumbo packet size
- Supports Auto MDI/MDI-X function
- Supports CSMA/CD protocol
- External power adapter 12V 0.5A
- FCC, CE class A compliant
