Management features
Multicast support |
Y |
Quality of Service (QoS) support |
Y |
Data transmission
MAC address table |
8000 entries |
Store-and-forward |
Y |
Supported data transfer rates |
10/ 100/1000Base-T |
Switching capacity |
16 Gbit/s |
Maximum data transfer rate |
1 Gbit/s |
Throughput |
11.9 Mpps |
Networking
VLAN support |
Y |
Link aggregation |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Flow control support |
Y |
10G support |
N |
Full duplex |
Y |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
8 |
DC-in jack |
Y |
Protocols
Management protocols |
SNMPv1, v2c |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |

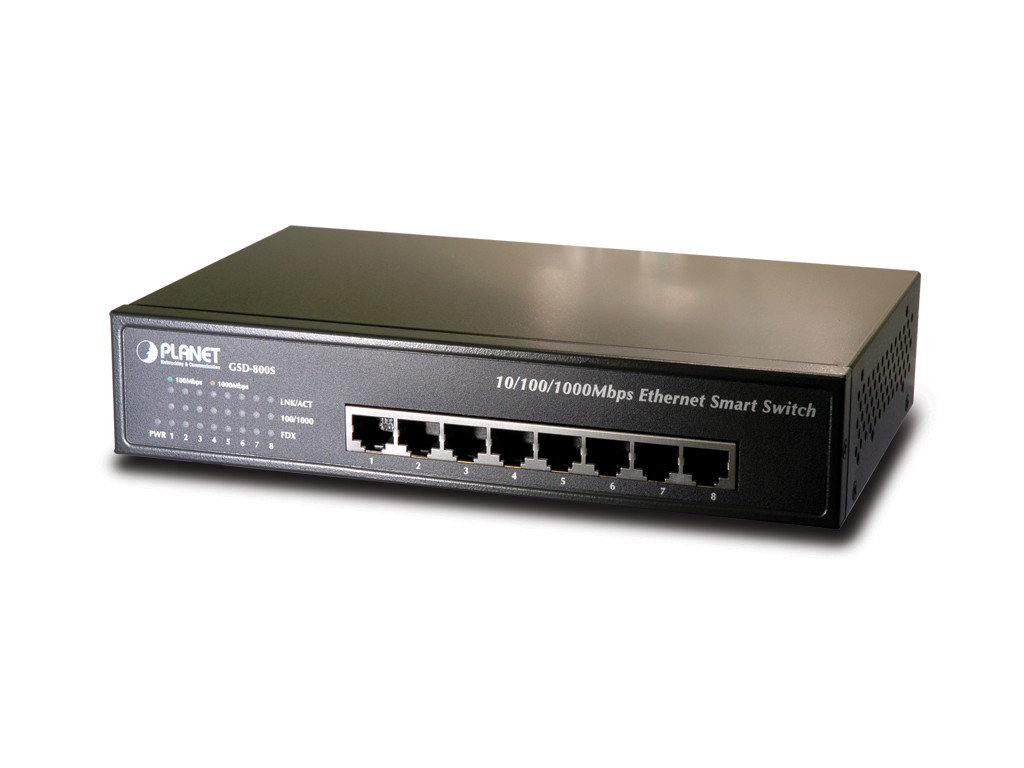

GSD-800S - 8-Port 10/100/1000Mbps, Auto-MDI / MDI-X, Full-Duplex, 8K MAC, 16Gbps, Jumbo Frame, Layer 2, Multicast, QoS, 8.7 W, 1.1 kg
3rd Generation of PLANET Desktop Web Smart Gigabit Switch
The GSD-800S is an 8-Port 10/100/1000Mbps Web Smart Gigabit Ethernet switch, utilizing a compact form factor which can be mounted in a 10/19-inch rack with optional rack-mounting kits, or placed on desktop. Compared with previous version, the enhanced software features as below:
- 802.1Q VLAN
- Rapid Spanning Tree
- IGMP Snooping
- 802.1X Authentication / RADIUS
- SNMP monitor and SNMP Trap
High Gigabit Performance / Wire-Speed Switching
With 16Gbps non-blocking switch fabric, 8k MAC Address table and 802.3x Full-Duplex flow control, the GSD-800S offers wire-speed packet transfer performance without risk of packet loss.
Friendly / Simple Web Management Interface
For efficient management, with its built-in Web-based management, the GSD-800S offers an easy-to-use and configuration facility. Via the WEB interface the GSD-800S can be programmed for basic Switch management functions such as per port speed duplex settings, Port Trunking, VLAN, Port Mirroring, Rapid Spanning Tree, 802.1X network security authentication and Misc Configuration. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization.
Remote and Centralize Management installation
Affording the current network to grow and expand, the GSD-800S supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. These features provide a cost-effective way to manage the devices from the Internet whenever you are at work or at home.
Easy Cabling installation
All eight RJ-45 copper interfaces support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The MDI/MDI-X auto detection supports wired connection to any Ethernet device without requiring cross-over cables.
Key Features
Generic Features
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab, 1000Base-T standard
- 8-Port 10 / 100 / 1000Mbps Gigabit Ethernet ports
- Each Switching port supports auto-negotiation-10 / 20, 100 / 200 and 1000 / 2000Mbps supported
- Auto-MDI / MDI-X detection on each RJ-45 port supports CSMA / CD protocol
- Prevents packet loss with back pressure (Half-Duplex) and 802.3x PAUSE frame flow control (Full-Duplex)
- 8K MAC address table, automatic source address learning and ageing
- 16Gbps switch fabric, non-blocking switch architecture
- 9K Jumbo Frame supports at all speed (10 / 100 / 1000Mbps)
Layer 2 Switching
- Supports Port-Based and 802.1Q VLAN function, up to 64 VLAN groups
- IEEE 802.1w Rapid-Spanning Tree protocol support
- Link Aggregation supports static mode and LACP (IEEE 802.3ad) - up to 4 Trunk groups Each trunk is maximum up to 8 ports
Multicast
- IGMP Snooping for multicast filtering, supports v1 and v2
- IGMP Query Mode supports for multimedia application
Quality of Service
- 4 QoS classes per port
- Traffic class assignment based on 802.1p tag, or DSCP field
- Multicast and Broadcast Storm Control as well as Flooding Control
Security
- Port Mirroring support for dedicated port monitoring
- IEEE 802.1X Port-Base access control, RADIUS ServerAuthentication
- Static MAC Address assigns destination MAC address at specifies port
Management
- Remote Web management interface
- Firmware upgrade through web interface
- Cable Diagnostics technology
- Supports SNMPv1 with RFC-1213 / 1573-Interface group and RMON Group 1 (Statistics)
- SNMP Trap
- Supports PLANET Smart-DISCOVERY Utility for deploy management
