Data transmission
| MAC address table |
4096 entries |
| Store-and-forward |
Y |
| Switching capacity |
16 Gbit/s |
| Jumbo frames |
9216 |
| Throughput |
11.9 Mpps |
Operational conditions
| Heat dissipation |
23 BTU/h |
Networking
| Broadcast storm control |
Y |
| Auto MDI/MDI-X |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Cable types supported |
Cat5, Cat5e, Cat6 |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T, 1000BASE-T |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Management features
| Quality of Service (QoS) support |
Y |
Design
| DIN rail mounting |
Y |
| Wall mountable |
Y |
| Rack mounting |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

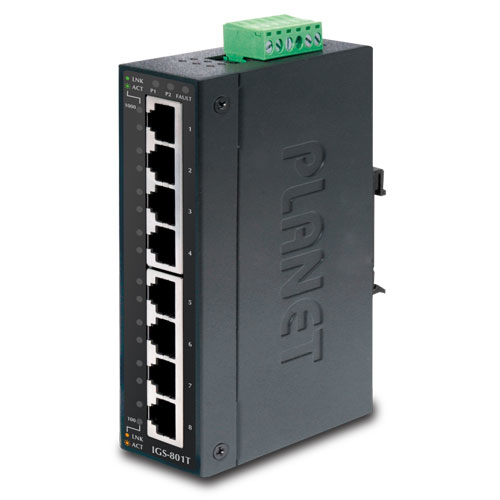

Industrial Gigabit Ethernet Switch, 8 x 10/100/1000Mbps RJ-45, IP30
Slim Type with More Practicability and Convenience
PLANET IGS-801T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 8 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.Its compact IP30-rated metal case features either DIN rail or wall mount for the efficient use of cabinet space.
Energy Saving with Lower Power Consumption
The IGS-801T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features makes the IGS-801T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
Green Networking
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the IGS-801T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switches to consume less power when they are less active.
Stable Performance under Difficult Environments
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
