Performance
| Processor frequency |
1600 MHz |
| Maximum duty cycle |
300000 pages per month |
| Daily duty cycle (max) |
1500 pages |
| Internal memory |
1024 MB |
| Scan to |
Cloud, E-mail, FTP, USB |
| Sensor type |
Dual CIS |
| Light source |
LED |
Paper handling
| Auto Document Feeder (ADF) media weight |
40 - 157 g/m² |
| Maximum scan area (ADF) |
216 x 356 mm |
| Letter |
Y |
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Plain paper |
Input capacity
| Standard input capacity |
50 sheets |
Power
| Input voltage |
24 V |
| Current |
1.67 A |
| Power supply type |
AC |
Ports & interfaces
| Standard interfaces |
Ethernet, USB 2.0 |
Scanning
| Duplex ADF scan speed (b/w, A4) |
30 ipm |
| ADF scan speed (b/w, A4) |
15 ppm |
| Optical scanning resolution |
600 x 600 DPI |
Additionally
| Scan type |
ADF scanner |
| Minimum scan area (Auto Document Feeder) |
13.2 x 13.2 mm |
| Duplex ADF scan speed (colour, A4) |
8 ipm |
| ADF scan speed (colour, A4) |
4 ppm |
| Black/white scanning colour modes |
Grayscale, Monochrome |
| Colour scanning |
Y |
LED, 600dpi, 50 sheets, 2.8kg

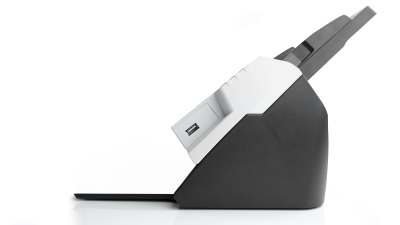

Plustek's eScan A150 allows end users to instantly power up the device for fast scanning. Its built-in 7" LCD touch screen is intuitive and offers a quick way to review or even crop targeted images, before delivering the final digitally captured data. People can send or save the final image in different file formats to multiple destinations such as: USB drive, network folder, mobile, e-mail or a variety of cloud service providers.
Setup Easily
eScan works as easy as an appliance. End users can just plug the network cable and turn it on to start. There is no need for IT staff setup and training. Just respond to the three easy intuitive steps on our large seven inch LCD screen and you are on your way.
Scan
A Big eScan button is always waiting for your touch. If you have other requirements simply change the scan setting; it’s done!
View
eScan allows you to validate the scanned images in the thumbnail mode. It also allows you to review each individual page in full page mode to crop, rotate, or even redact the page. If you are happy with the scanned thumbnail image, you are ready to deliver!
Save
eScan is loaded with 9 destinations to choose from: USB drive, network folder, mobile, eMail address, or variety of cloud (Dropbox, Google Drive, Evernote, Box, SharePoint or FTP). Once a destination is selected just enter your credentials, cheers!
Sending to multiple destinations
From time to time you may want to send same document to different destinations. The eScan allows you to send the same scanned document over and over again.
