Other features
| Optional fans |
1x 120mm, 4x 120mm/140mm |
| Drive bays |
8x 3.5", 2x 5.25" |
| Ventilation fan(s) |
2x 120mm |
| Expansion slots |
7 |
Design
| Supported motherboard form factors |
ATX, Micro-ATX |
| Form factor |
Midi-Tower |
| Type |
PC |
FD-CA-DEF-R2-BL - Mini ITX, Micro ATX & ATX, Midi Tower, 2x 120mm (included), 1x 120mm & 4x 120mm/140mm (optional), 8x 3.5", 2x 5.25", 7x expansion slots, 2x USB, 1x eSATA, Audio I/O, no PSU, 12.5kg, black pearl
A NEW GENERATION OF STYLE!

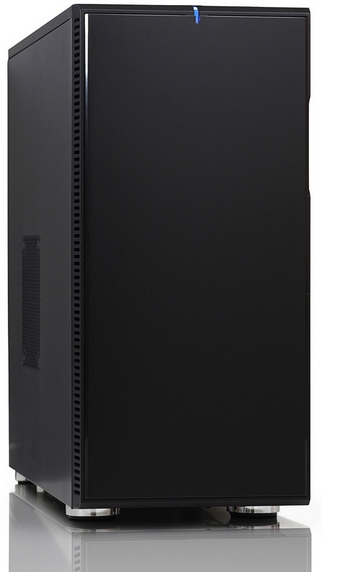

The long awaited Define R2 case is reaching new heights in combining stylish, contemporary design with maximum functionality and noise absorbing features. The minimalistic, yet stunning front panel design, fitted with noise absorbing material on the inside, creates an aura of exclusivity.
The patent pending feature ModuVent, in which you can choose whether to have side and top panels open or not, makes the case appealing for users seeking optimal silence, as well as the performance hungry ones.

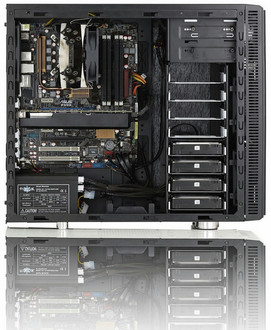

The sleek black interior is matched with pre-fitted, dense bitumen material on the side panels, efficiently absorbing noise and vibrations. You can fit an astonishing total of eight(!) hard drives into this case, using the user friendly HDD-trays. All painted in a nice white color and using black silicone mounts.
PSU is mounted in the bottom of the case, with a convenient pull-out filter beneath it.
Are you one of those users always ending up with a case full of tangled cables? No more. The Define R2 offers a convenient and good looking way of hiding them away. The motherboard has rubber covered holes in which you can easily route the cables behind the motherboard.
KEY FEATURES
- Stunning front panel design.
- Patent pending ModuVent design, allowing the user to either have optimal silence or optimal airflow.
- Pre-fitted with dense, noise absorbing bitumen.
- 8(!) white painted HDD-trays, with silicone mounting.
- A total of 7 fan slots (2x120mm in front, 2x 120/140mm in top, 1x120mm in back, 1x 120/140mm in side panel, 1x 120/140mm in bottom).
- 2x 120mm Fractal Design 120mm Silent Series 15dB fans included.
- Fan controller for 3 fans included.
- Easily removable front fan filters with clip-on holders for 120mm fans.
- Supports graphic card lengths up to circa 290mm and CPU coolers with height of maximum circa 165mm.
- Supports PSUs with a depth of maximum circa 170mm, when using bottom 120/140mm fan location. When not using the bottom 120/140mm fan location, the case supports also longer PSUs, typically 200-220mm.
