Technical details
| Frequency range |
0 - 100 kHz |
| AC voltage range |
0 - 1000 V |
| Data hold |
Y |
| Resistance range |
0 - 40 Ω |
| Basic accuracy (DC voltage) |
+/- 0.5% |
| Basic accuracy (AC voltage) |
+/- 0.8% |
| Basic accuracy (AC current) |
+/- 1.2% |
| Basic accuracy (DC current) |
+/- 1.2% |
| Basic accuracy (resistance) |
+/- 0.8% |
| AC current range |
0 - 10 A |
| Continuity check |
Y |
| Diode test |
Y |
| Temperature measurement range |
0 - 760 °C |
| Basic accuracy (frequency) |
+/- 1.5% |
| DC current range |
0 - 10 A |
| Basic accuracy (capacitance) |
+/- 1.5% |
| Capacitance range |
0 - 40 nF |
| DC voltage range |
0 - 1000 V |
Voltage, Current, Resistance, Duty Cycle, Temperature, Frequency, Capacitance, Black/Yellow

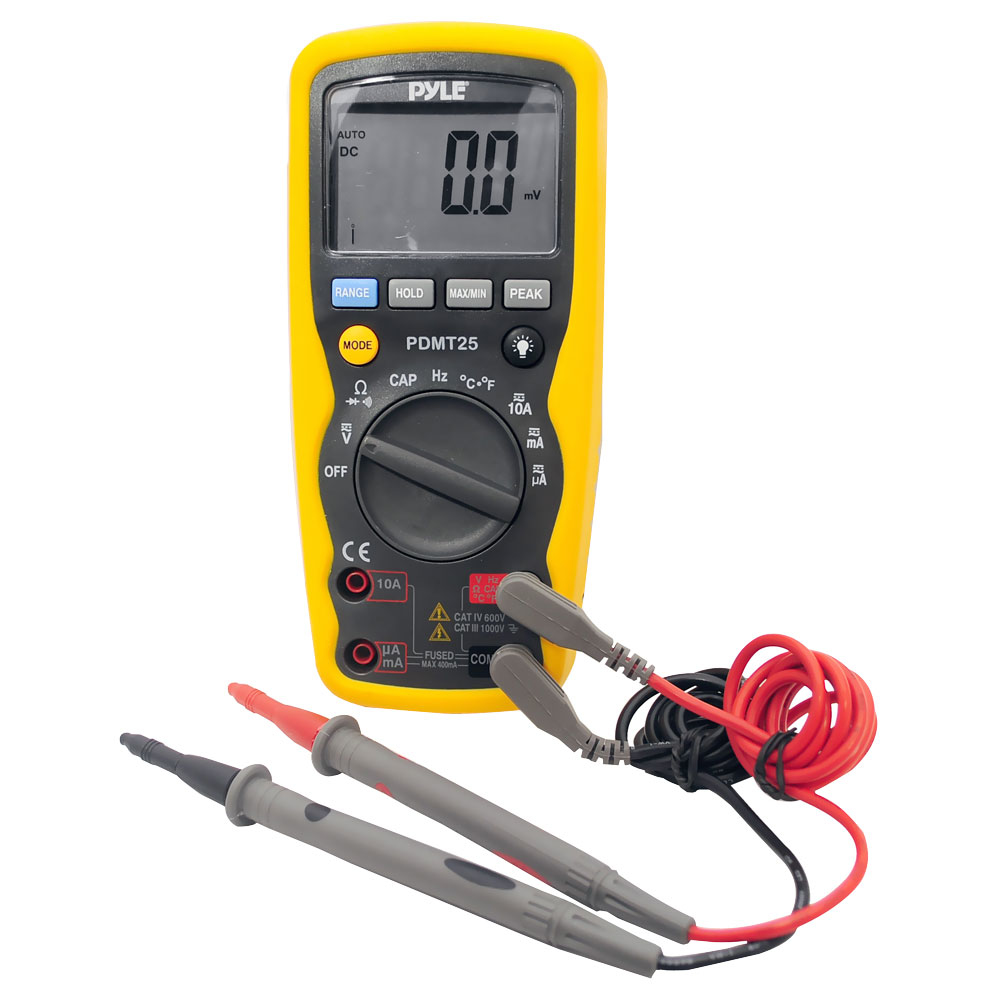

This digital multimeter from Pyle works well in both automotive and home electronics applications. The PDMT25 will help you diagnose and solve problems with your electrical equipment. It measures AC/DC voltage, current, resistance, duty cycle, temperature, frequency, and capacitance. You can also check diodes and continuity. Easily measure these data with the included test leads and K-type temperature probe. It also has a peak capture mode to display only the highest measured data point, as well as a data hold mode. Includes 9V battery. 4000 display count.
