Technical details
| DC voltage range |
0.2 - 1000 V |
| Frequency range |
0.02 - 1000 kHz |
| AC voltage range |
0.2 - 750 V |
| Buzzer |
Y |
| Backlight |
Y |
| Resistance range |
200 - 10000000 Ω |
| Capacitance range |
2 - 10000000 nF |
| Basic accuracy (DC voltage) |
0.015 + 0.003 |
| Basic accuracy (AC voltage) |
0.20 + 0.05 |
| Basic accuracy (AC current) |
0.30 + 0.10 |
| Basic accuracy (DC current) |
0.055 + 0.005 |
| Basic accuracy (capacitance) |
1 + 0.5 |
| Basic accuracy (resistance) |
0.020 + 0.003 |
| AC current range |
0.02 - 10 A |
| DC current range |
0.0002 - 10 A |
| Basic accuracy (frequency) |
0.01 + 0.003 |
| Continuity check |
Y |
| Diode test |
Y |
| Measuring category |
CAT III 300V |
Display
| Display digits |
5.5 digits |
| Display size (HxV) |
256 x 64 mm |
5.5 digit resolution, 0.015% DC Voltage Accuracy, USB, RS-232, SCPI, 200 mV - 1000V, 200 uA - 10 A, 200 Ω - 100 MΩ

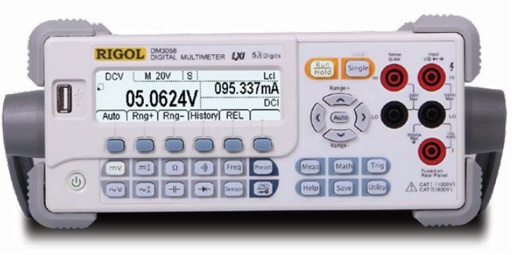

The Model DM3058 DMM gives reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3058 is a great bench tool for basic, reliable measurements regardless of your application or need.
