Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Supported memory types |
DDR3L-SDRAM |
| Memory voltage |
1.35 V |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
2 |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
SD, SDHC, SDXC |
| Optical drive type |
N |
| Card reader integrated |
Y |
| Storage drive interface |
M.2, Serial ATA III |
Performance
| BIOS type |
AMI |
| Linux operating systems supported |
Y |
| Maximum resolution |
3840 x 2160 pixels |
| Built-in camera |
N |
| Windows operating systems supported |
Y |
Packaging content
| Display included |
N |
| Drivers included |
Y |
| Keyboard supplied |
N |
| Mouse included |
N |
| Power cord included |
Y |
Motherboard
| Supported processor frequency (max) |
3 GHz |
| Number of processors supported |
1 |
| Processor socket |
BGA 1168 |
| Compatible processor series |
Core i7 |
Power
| AC adapter output current |
3.42 A |
| Number of power supply units |
1 |
| AC input frequency |
50/60 Hz |
| Power supply |
65 W |
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Ports & interfaces
| DVI port |
N |
| CardBus PCMCIA slot type |
N |
| Combo headphone/mic port |
Y |
| USB 2.0 ports quantity |
2 |
| S/PDIF out port |
N |
| COM ports quantity |
1 |
| HDMI version |
1.4a |
| DC-in jack |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DisplayPort version |
1.2 |
Processor
| Processor boost frequency |
3 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| L3 cache |
4 MB |
| L2 cache |
0.512 MB |
| Processor threads |
4 |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.4 GHz |
Design
| Housing material |
Plastic |
| Redundant fans support |
N |
| VESA mounting |
Y |
| Cable lock slot |
Y |
| VESA mounting interfaces |
75 x 75, 100 x 100 mm |
| LED indicators |
Y |
| Cable lock slot type |
Kensington |
| Product type |
Mini PC (<= 3L) barebone |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
Y |
| Conflict Free |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel Advanced Management Technology |
N |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Поддержка Intel Unite |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
N |
| Intel® OS Guard |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Networking
| 4G WiMAX |
N |
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
| Networking features |
LAN, WLAN |
Operational conditions
| Operating relative humidity (H-H) |
10 - 90% |
Weight & dimensions
| Depth |
141 mm |
| Weight |
360 g |
| Width |
141 mm |
| Height |
29 mm |
Expansion slots
| PCI Express slots version |
2.0 |
Certificates
| Certification |
EMI: FCC, CE, BSMI, C-Tick\nCB, BSMI, ETL |
Software
| Compatible operating systems |
Windows 7, Window 8, Linux |
Additionally
| InTru™ 3D Technology |
Y |
| Mini DisplayPort quantity |
1 |
| Colour of product |
Black |
| Graphics |
HD Graphics 5500 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 50 °C |

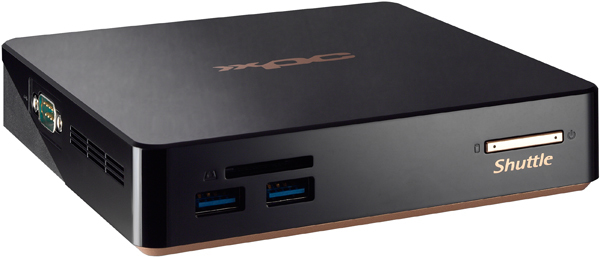

Mini-PC, Intel Core i7-5500U, HD 5500, 16GB Max, 1 x 2.5” HDD / SSD Bay, 1 x HDMI, 1 x Mini-DisplayPort, 2 x USB 3.0, 2 x USB 2.0, Audio Combo, SD Card Reader, RS-232, Gigabit LAN, WLAN 802.11ac, Bluetooth 4.0, w/o OS
Good value, small and powerful:
With the NC01 Series, Shuttle introduces its first Mini-PC with less than 600 ml in volume. These small computers are powered by Intel's highly efficient "Broadwell" ULV processors ranging from Celeron up to Core i7. This barebone can be equipped with up to 16 GB of DDR3L memory, one M.2 (2242) SSD card and one 2.5" storage drive (HDD or SSD). It also comes with a vast array of connectivity options such as HDMI, Mini-DisplayPort, USBs, LAN, WLAN-AC, COM port, Audio and an SD card reader. This makes it the ideal platform for applications such as digital signage, POS, Kiosk, Thin Client, Cloud Computing, Office PC and Multimedia.
