Memory
| Supported memory clock speeds |
1333 MHz |
| Supported memory types |
DDR3L-SDRAM |
| Memory voltage |
1.35 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Maximum internal memory |
8 GB |
Ports & interfaces
| Serial ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Y |
Power
| AC adapter output current |
2.1 A |
| Number of power supply units |
1 |
| Power supply |
40 W |
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Performance
| Linux operating systems supported |
Y |
Motherboard
| Number of processors supported |
1 |
Processor
| Processor boost frequency |
2.16 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
6 W |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.6 GHz |
Processor special features
| Intel Rapid Storage Technology |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® Secure Key |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® OS Guard |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Design
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| Cooling type |
Passive |
Expansion slots
| PCI Express slots version |
2.0 |
Additionally
| InTru™ 3D Technology |
N |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
1.15L, Intel Celeron N3050 (2M Cache, 1.60 GHz), 1 x SO-DIMM max.8GB, 1 x SATA HDD/SSD, Gigabit LAN, WLAN, 40W

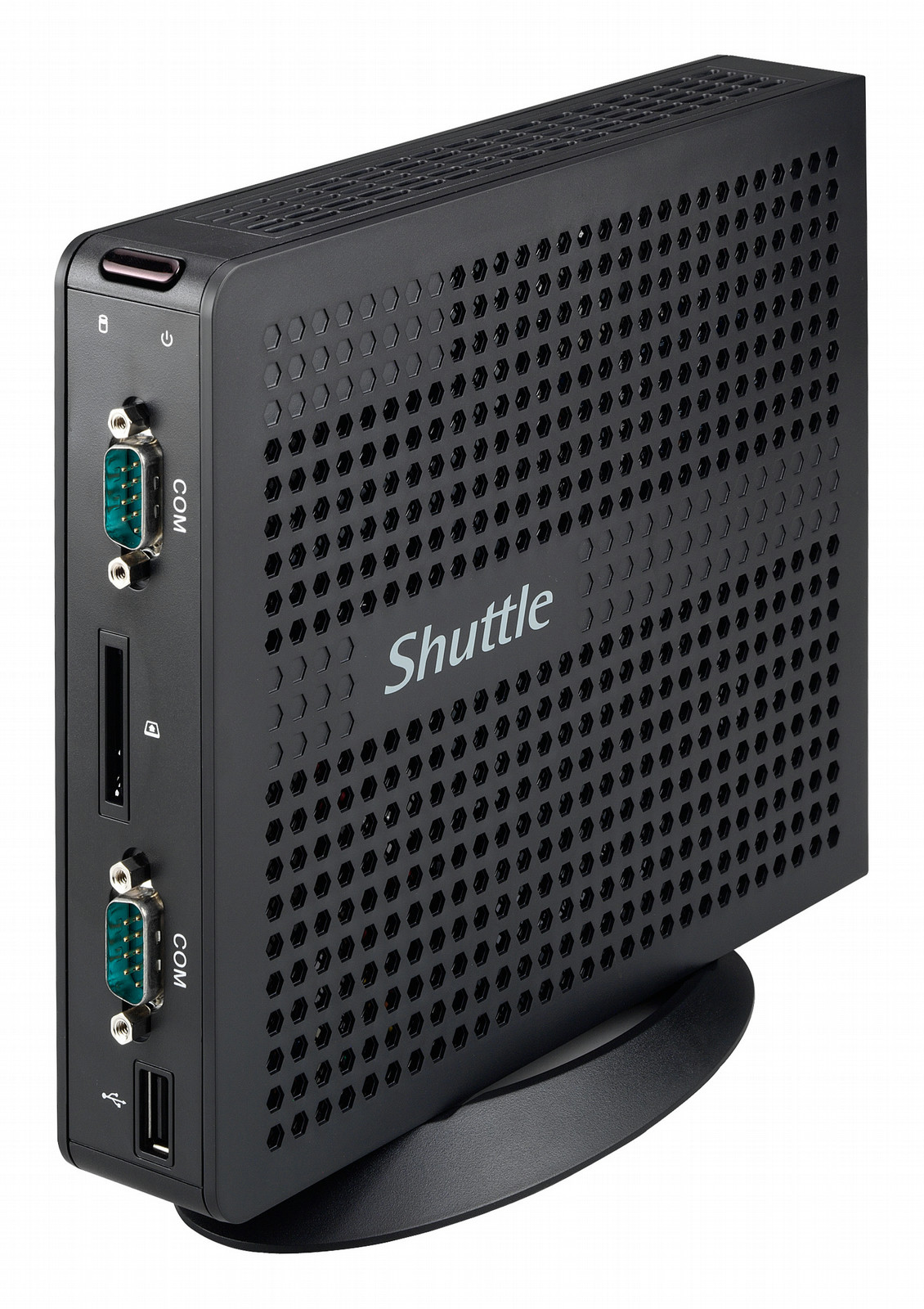

The XS36V5 is the new model of Shuttle's successful XS36 range and comes with an energy-efficient Intel Celeron Dual Core processor, codenamed "Braswell". This version maintains the proven chassis design with fanless cooling and high connectivity. The 1-litre PC brings Intel's powerful HD Graphics (8th Gen) that supports hardware acceleration for full HD video encoding/decoding on up to three displays. With an appropriate SSD or hard drive installed, the XS36V5 is suitable for continuous 24/7 operation and the platform of choice for office and media applications. In addition, two serial ports can be used also for vertical market applications.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.
Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.
Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.
The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.
Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.
High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.
