Video
| Maximum video resolution |
720 x 576 pixels |
| Motion JPEG frame rate |
30 fps |
| MPEG-4 frame rate |
30 fps |
| PAL resolutions |
720 x 576 pixels |
| NTSC resolutions |
720 x 480 pixels |
| Maximum frame rate |
30 fps |
Networking
| Supported network protocols |
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2) |
System requirements
| Minimum RAM |
1024 MB |
| Minimum processor |
Core 2 Duo 1.8GHz |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

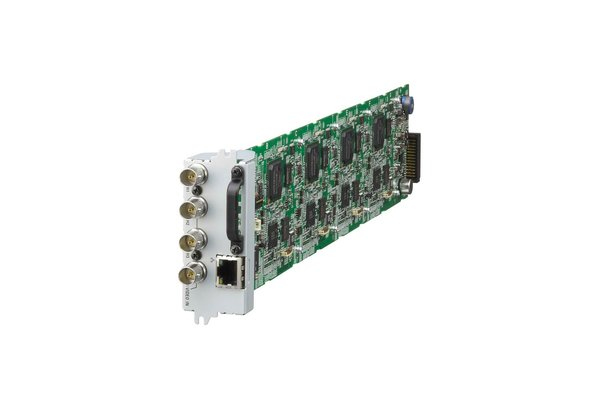

SNT-EP154, XDNR, RJ-45, 4x Analog Video
Designed for use in applications requiring a totally scalable and space saving solution, the SNT-EP154 is a powerful, fully featured blade type video four channel video encoder delivering a range of unique capabilities.
The SNT-EP154 delivers a unique blade type four channel camera encoding concept delivering highly flexible system expansion possibilities with a range of rack mounting accessories. The SNT-EP154 adds significant value and performance to existing medium to large scale analogue systems where a highly scalable encoding solution is required.
Converting up to four traditional analogue video signals per blade into multiple digital video streams for transmission via IP-based networks, the SNT-EP154 offers unrivalled network flexibility.
The combination of powerful features and the enhancements makes the Sony SNT-EP154 encoder the obvious choice when migrating from existing analogue camera systems, to a powerful, flexible and scalable IP based monitoring solution.
What’s more, this encoder comes with ONVIF (Open Network Video Interface Forum) compliance for easy interoperability with IP monitoring products from a variety of manufacturers.
