Technical details
| Symbol rate |
1 - 45 Ms/s, 10 - 30 Ms/s |
| Supported batteries |
AAA |
| Favorite list TV programs |
8 |
| Frequency range |
950 - 2150 MHz |
| Timeshift |
Y |
| Events timer/reminder |
Y |
| Handheld remote control |
Y |
| On Screen Display (OSD) |
Y |
| Child lock |
Y |
| Parental control |
Y |
| Electronic Programme Guide (EPG) |
Y |
| Digital Satellite Equipment Control (DiSEqC) |
1.0, 1.3, 1.2 |
Memory
| Flash memory |
16 MB |
| Internal memory |
256 MB |
Ports & interfaces
| S/PDIF out port |
Y |
| Composite video out |
1 |
| SCART ports quantity |
1 |
| Audio (L,R) out |
1 |
| Component video (YPbPr/YCbCr) out |
1 |
File formats
| Image formats supported |
JPG |
Additionally
| Demodulation type |
QPSK, 8PSK |
SRT 7805, DVB-S/DVB-S2, 950-2150MHz, 5000ch, LED, HDTV/1080i, USB2.0, HDMI, TV SCART, S/PDIF, RCA, Cmpnt-Y&Pb&Pr, EPG, DiSEqC, 30W, IR, 2 x AAA, Remote, 12Mnths HD+ Smartcard, 0.9kg, Black

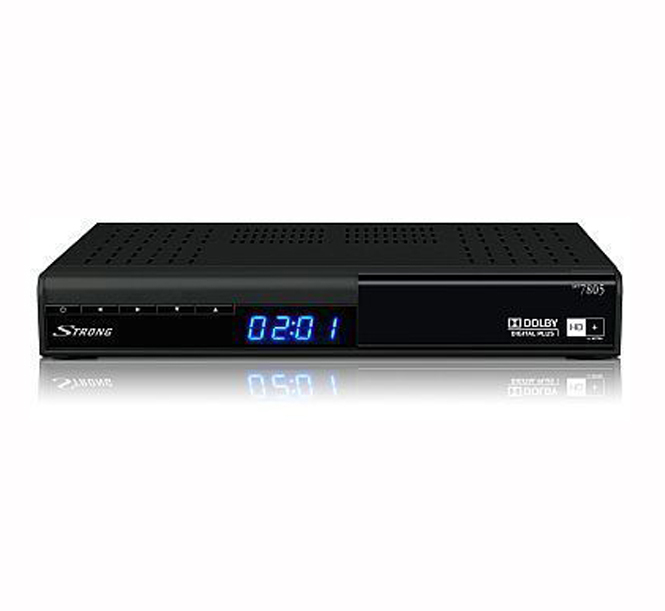

<b>Digital High Definition Satellite Receiver SRT 7805</b>
<b>HD+, the promise for true pleasure</b>
The SRT 7805 is a high-end HD receiver ahead of its time. The included smart card brings the full variety of HD+ channels to your home. Connect to your TV via HDMI and enjoy razor sharp pictures and breathtaking sound. With USB connector for recording, playback and more. The SRT 7805 is entertainment without compromise.
<b>Features:</b>
- HDTV receiver for digital Free-To-Air TV and Radio programmes via satellite;
- HD+ compliant;
- Embedded smartcard reader to watch HD+ programmes encrypted by Nagravision Conditional Access;
- 12-month free HD+ card included;
- USB port for recording of TV and radio programmes, playing MP3 music and viewing JPG images;
- Event (daily, weekly) and one touch recording;
- Timeshift: pause live TV and resume later;
- Excellent audio and video quality;
- Quick and easy installation and all new user-friendly menu;
- 5000 channels memory capacity;
- LED display showing channel number or time;
- 8 Favourite lists for TV and radio programmes;
- Standby switch and navigation buttons on the front;
- Electronic TV Programme Guide (EPG) for on screen programme information and schedule for the following 7 days;
- Booking of events directly from EPG;
- 30 timer functions;
- Parental lock function;
- Teletext;
- DVB subtitling and audio track support in German and English;
- German and English on screen menu (OSD);
- Edit function for TV and radio programme name and transponder data;
- Software update via satellite (OTA);
- Signal strength and quality bar for digital transponders;
- Automatic, network and manual channel scan for TV and / or Radio programmes;
- Video Outputs: HDMI, TV SCART (RGB, CVBS), Component, VIDEO;
- Digital sound through optical output (S/PDIF) by connecting to digital amplifier;
- Selectable output for 576i, 576p, 720p, 1080i format;
- Supports DiSEqC 1.0, 1.2, 1.3;
- Connectors: SAT IN, HDMI, TV SCART (RGB, CVBS, Audio L&R), 3 RCA (Audio L&R and Video), Component YPbPr, S/PDIF optical, 12 V power input; USB;
- Accessories: Remote control, 2 x AAA batteries, 12 V power adapter and 12-month free HD+ smartcard.
