Storage
| HDD/SSD combo cage |
Y |
| Supported hard disk drive sizes |
2.5, 3.5 " |
Design
| Supported motherboard form factors |
Micro-ATX, Mini-ITX |
| Number of 5.25" bays |
1 |
| Number of 3.5" bays |
3 |
| Number of internal 3.5" bays |
2 |
| Side window |
N |
| Number of 2.5" bays |
3 |
| Maximum graphics card length |
290 mm |
| Maximum CPU cooler height |
150 mm |
| Number of external 5.25" bays |
1 |
| Material thickness |
0.4 mm |
| Number of expansion slots |
4 |
| Form factor |
Mini-Tower |
| Certification |
CE |
| Type |
PC |
| Suitable for |
Home/Office |
Ergonomics
| Easy to customize |
Y |
| Reset button |
Y |
| LED indicators |
Y |
| Cable management |
Y |
Cooling
| Side fans diameters supported |
120 mm |
| Rear fans diameters supported |
120 mm |
| Maximum side fans |
1 |
| Maximum rear fans |
1 |
Logistics data
| Quantity per pallet |
50 pc(s) |
| Quantity per master carton |
1 pc(s) |
Weight & dimensions
| Depth |
350 mm |
| Width |
165 mm |
| Height |
350 mm |
Ports & interfaces
| Audio input |
Y |
| Audio output |
Y |
| USB 2.0 ports quantity |
2 |

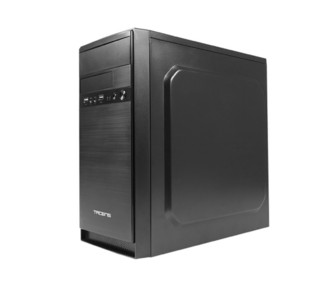

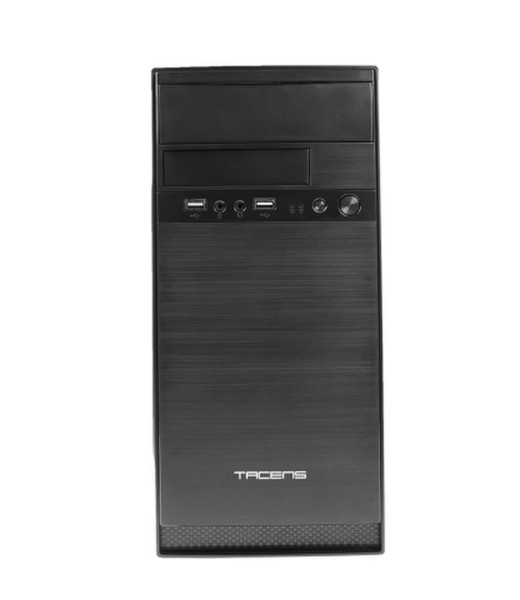

Mini-Tower, Micro-ATX/Mini-ITX, 2x USB 2.0, Audio(HD)+Mic, 1x 5.25'', 3x 3.5'', 3x 2.5'', SPCC 0.4mm/Aluminium, Black
Design

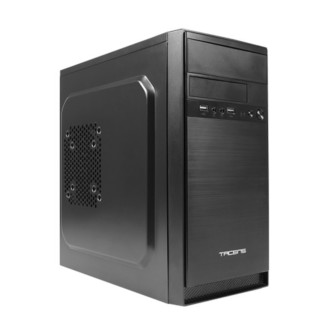

The AC017 box is made of high quality alloy. It has a Micro-ATX / Mini-ITX stylish chassis, durable and lightweight, with a perfect anti-cuts finish and an elegant brushed aluminum front panel.
Features
The AC017 Supports Graphics Cards up to 290mm. It’s design is classic and spacious and it comes with several bays to custom it’s performance and 4 expansion slots.
- Internals: 2 x 3.5″ HDD / 3 x 2.5″ SSD
- Externals: 1 x 5.25″ DVD / 1 x 3.5″ FDD
Connections
- 2 x USB 2.0 / Audio HD
Cooling
The AC017 provides maximum cooling. With the ability to install up to 2 fans (not included) and a CPU cooler up to 150mm, this mini tower will give the best cooling at all times.
