Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
100, 1000 Mbit/s |
Security
| VPN support |
PPTP, L2TP |
| System event log |
Y |
| MAC address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP, SNTP |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
DSSS, OFDM |
Other features
| Mobile network connection |
N |
| xDSL connection |
N |
| Rack mounting |
N |
| Input current |
0.3 A |
| Frequency band |
2.4 GHz |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
2 |
Power
| Power over Ethernet (PoE) |
N |
Performance
| Firmware upgradeable |
Y |
| Chipset |
Broadcom BCM5357 |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
URL, Client |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
2.4GHz, 300Mb/s, 802.11n, Fast Ethernet, 1 x WAN, 4 x LAN, WPS, DDNS, QoS

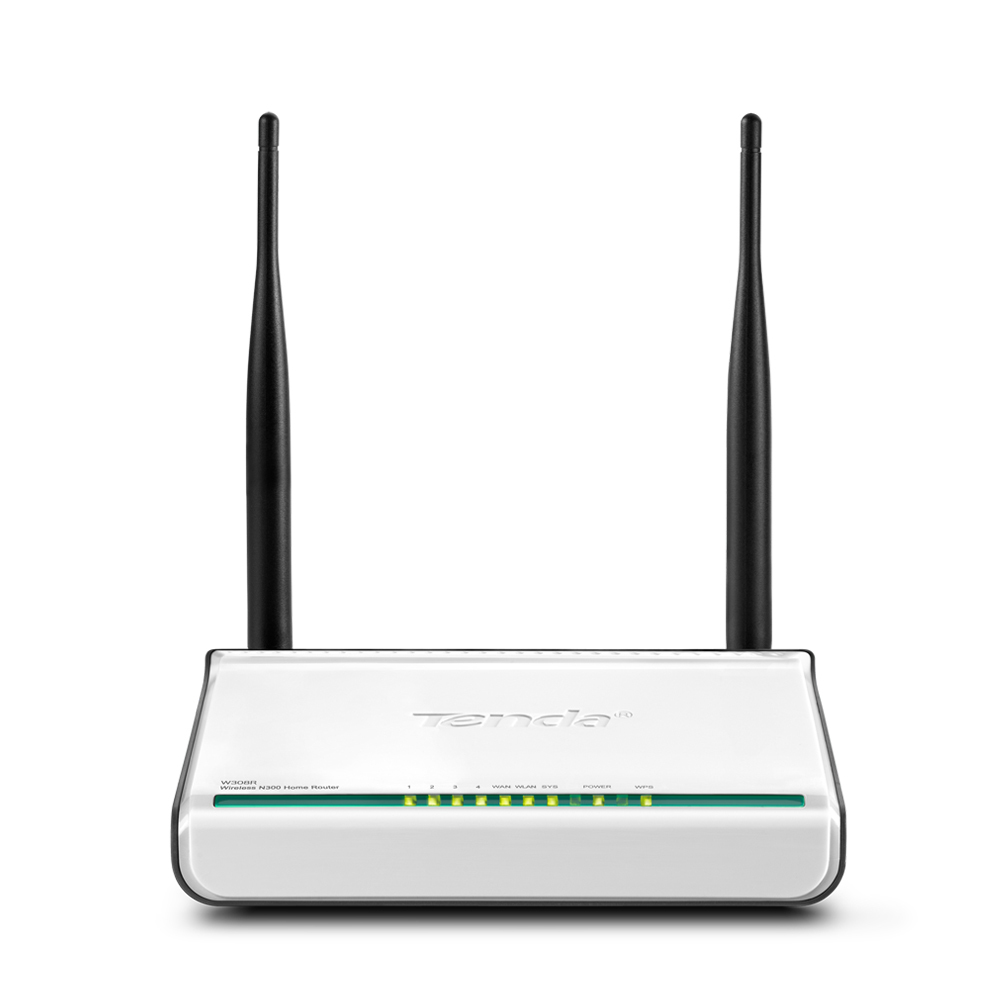

Wireless N300 Home Router
What it does?
W308R is an 802.11n compliant wireless router that delivers up to 8x faster wireless speeds and 6x farther range than 802.11g while staying backward compatible with 802.11g devices. Connect the W308R to a cable or DSL modem and provide up to 300Mbps Internet access to multiple computers, game consoles, and media players. Create a secure wireless network to share photos, files, music, videos, printers, and network storage. Powered by MIMO technology and equipped with two external 5dBi antennas, this router provides superior wireless coverage for larger homes and offices, or for users running bandwidth-intensive applications. The W308R also includes a 4-port 10/100Mbps Ethernet switch for extra users With intelligent QoS, it prioritizes both wired and wireless Internet traffic to bandwidth-sensitive applications like online gaming, VoIP or stream multimedia. Also it supports for WPA/WPA2 security standards ensure that you will be able to use the best possible encryption regardless of your other wireless devices.
High performance powered by Broadcom
Powered by the WiFi technology from leading chipmaker Broadcom, the W308R offers a more reliable and more stable wireless performance, bringing you a better experience in surfing, emails, gaming, streaming video and more.
Superior wireless coverage
Equipped with 2 antennas and 2x2 MIMO technology, users can create a high speed wireless network and up to 18X the speed and 6X the range of conventional 11g products. The W308R shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network in a long-distance connection where legacy 11g products may not!
Easily extending wireless network
Wireless ISP (WISP) features a wireless WAN connection that allows the router to connect to a hotspot, usually provided by a ISP, and create a new wireless network for share by multiple users.
Secured conection
To protect your wireless data communication and privacy, the W308R provides WPA/WPA2 encryptions that are created by the WI-FI Alliance industry group, as WEP encryption has been no longer the strongest and safest guards for outside threats.
Intelligent bandwidth control
With QoS over IP address features, the W308R prioritizes optimal bandwidth down to a specific computer or device based on IP address. So, bandwidth-intensive tasks such as voice, video and data transmission can be conducted simultaneously without lag.
Easy manage internet access
The router provides ways to block a specific PC to access to Internet or to a specific website using Client, Mac and/or URL filter features. It is simple and easy to deploy and also helps administrators to better manage network resources.
Easy to setup and use
With the Tenda Easy Setup Utility, you can set up your wireless network in minutes. The simple UI will guide you through a simple process to configure your Internet Service Provider (ISP) settings to quickly establish broadband Internet connectivity.
