Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Security
| VPN support |
PPPoE/PPTP/L2TP |
| MAC address filtering |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Other features
| Mobile network connection |
N |
| xDSL connection |
N |
| Bandwidth |
2.4 GHz |
| Frequency band |
2.4 GHz |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
5 dBi |
| Transmit power |
15 - 17 dBmW |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

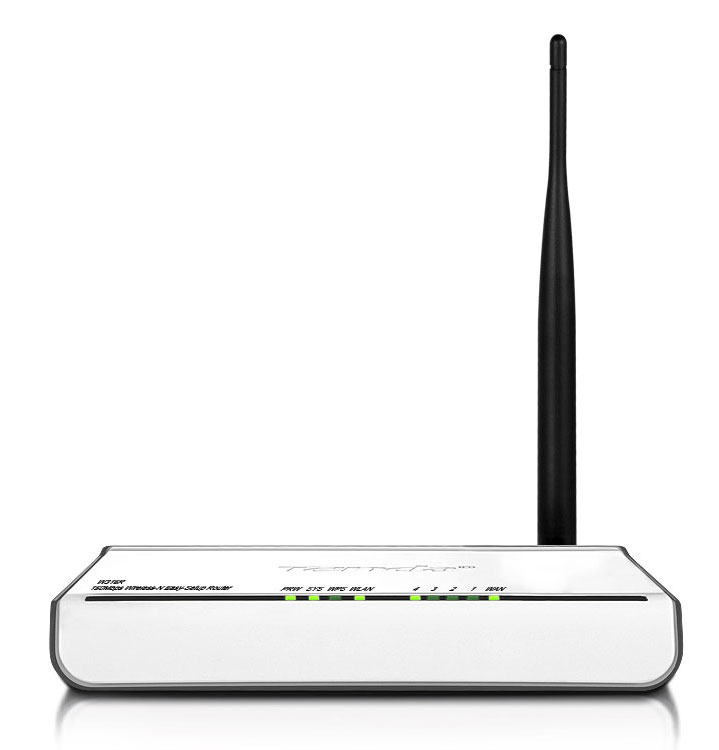

W316R - 802.11b/g/n, 2.4GHz, 150Mbps, 5dBi, Fast Ethernet, DHCP server, White
W 316R is a 802.11n compliant wireless router that delivers up to 4x faster wireless speeds and 3x farther range than 802.11g while staying backward compatible with 802.11g/ b devices.
Upgrading your home network to 150Mbps of Wireless N speed, the W316R provides an excellent solution for experiencing better wireless performance while sharing a broadband Internet connection with multiple computers over a secure wireless network.
Powered by MIMO technology and equipped with one external 5dBi antennas, this router performs faster file transfers and farther coverage enabling greater wireless signals across your home. The W316R also includes a 4-port 10/100Mbps Ethernet switch for extra users
The W316R makes it easy to set up your wireless network in your home or office without professional installation. Thanks to the world’s most intuitive utility interface, it takes you to finish easily installing your wireless network and Internet connection in three steps. Once the setup process is complete, you can share a high-speed Internet connection, files, media, and more. Also, to prevent unauthorized access, it supports for WPA/WPA2 security standards ensure that you will be able to use the best possible encryption regardless of your other wireless devices.
The W316R is ideal for sharing your Internet connection throughout home or small office.
