Cooling
| Maximum top fans |
2 |
| Rear fans installed |
1x 120 mm |
| Maximum rear fans |
1 |
| Bottom fans diameters supported |
120 mm |
| Front fans installed |
1x 120 mm |
| Maximum bottom fans |
1 |
| Maximum front fans |
2 |
| Fan speed |
1000 RPM |
| Rear fans diameters supported |
120 mm |
Design
| Type |
PC |
| Suitable for |
Home/Office |
| Illumination |
Y |
| Side window |
N |
| Form factor |
Midi-Tower |
| Number of 3.5" bays |
7 |
| Number of 5.25" bays |
3 |
| Number of expansion slots |
7 |
| Number of internal 3.5" bays |
6 |
| Number of 2.5" bays |
6 |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Micro ATX/ATX, 3x 5.25", 1x 3.5", 6x 2.5"/3.5", Mid Tower, SECC, USB 3.0/2.0, Snow

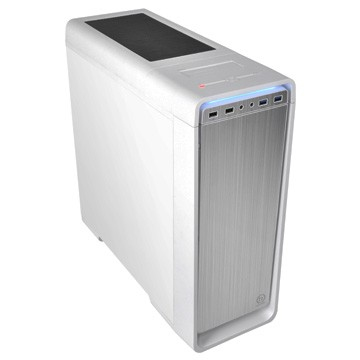

<b>Thermaltake Urban S31 mid-tower chassis – Snow Edition</b>
Urban S31 mainstream mid-tower, categorized in Thermaltake latest chassis collection – Urban Series. The entire series has a simple and elegant aesthetic, design for users who looks for everything but a flamboyantly appearance.
<b>Simple Design</b>
Built with brushed aluminum finish front door panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet sophisticate aesthetic.
<b>Handy I/O ports</b>
The perforated front-top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports along with two USB 2.0 ports, a HD microphone and headset jacks, to grand direct access when needed.
<b>Extreme silent performance</b>
The preinstalled sound-damping foams for extreme silence purpose on both side panels of Urban S31 reduce noise and acoustic levels within the chassis.
<b>Easy Hot Swap</b>
Top-mounted 2.5” or 3.5”HDD Docking Station enables blazing fast file transfer and effortless hot-swap drive replacement design for easy setup.
<b>Innovative tool-less design</b>
The latest tool-less innovation with 5.25” & 3.5” tool-free drive bay design minimized the hassles of installing ODD and HDD devices.
<b>Advanced Ventilation</b>
Two preinstalled 120mm fans to optimize system ventilation in Urban S31. Plus pre-mounted hole for more ventilation options, users still can build up system ventilation by their preference.
<b>High-end Complete System on the go</b>
Enables user to build up a complete high-end solution with ease with 240mm radiator liquid cooling system and extra long graphic card supported to protect user’s hardware and increase CPU’s overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
