Design
| Supported motherboard form factors |
ATX, EATX, Micro-ATX |
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
1 |
| Number of internal 3.5" bays |
8 |
| Side window |
Y |
| Number of 2.5" bays |
8 |
| Maximum CPU cooler height |
180 mm |
| Number of expansion slots |
8 |
| Form factor |
Full-Tower |
| Type |
PC |
Cooling
| Top fans installed |
1x 200 mm |
| Rear fans installed |
1x 140 mm |
Weight & dimensions
| Depth |
602 mm |
| Weight |
13800 g |
| Width |
235 mm |
| Height |
585 mm |
Ports & interfaces
| Audio input |
Y |
| Audio output |
N |
| USB 2.0 ports quantity |
4 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Full Tower, SECC, Micro ATX, ATX, Extend ATX, USB, HD Audio

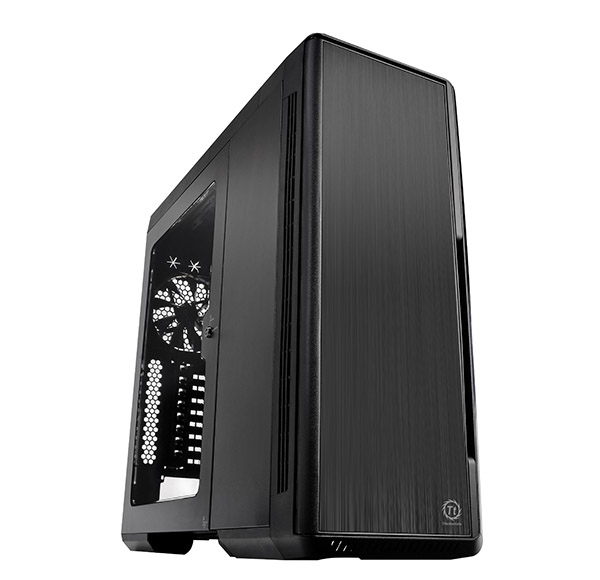

Thermaltake Urban T81 full-tower chassis
Thermaltake presents the adoption of the Urban with the new Urban T81 – The classic beauty impact. Beautifully architected, T81 is engineered for one solid purpose: provide enthusiasts the ability to build the highest performing systems while remaining the appearance simple and elegant. It is not merely a PC chassis, more like a creation of modernism.
Dual Swing Door Design
Inspired by the specific term “Suicide door” for a car door hinged at its rear rather than the front, as the origin of horse-drawn carriages; T81 is designed with this innovative inspiration apart from other modern chassis. Likewise, the front door panel is build with brushed aluminum finish to mask the extrusive drive devices, not only unify the appearance but a modern yet sophisticate aesthetic.
Fully Modular Concept
A highly customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit one’s need and removing the 5.25” & 3.5” drive bays to gain maximum interior space for advance cooling performance or liquid system build.
Sleek I/O Port
The sleek aluminum mental brushed I/O port section has implemented two of latest data transfer SuperSpeed USB 3.0 ports along with four USB 2.0 ports. The integration of fan controller and fan hub could easily manage the airflow of up to 10 fans at once. Besides, a HD microphone and headset jacks are built for grand direct access when needed.
Supreme Air Cooling System
Urban T81 is build with its fundemantal airflow optimized design. Standard equipped with triple 200mm fans and a 140mm fan. It is the first in market that has the ability to house 4x 200mm fans along with three more 120mm fans by achieving unrivalled airflow in your chassis.
Extensive Liquid Cooling Support
Urban T81 pushes the envelope and utilize high-end water cooling solution that feature with either front 360/top 420mm, or front 420mm/top 360mm, along with rear 120mm and bottom 120/240mm radiators support for extreme performance.
