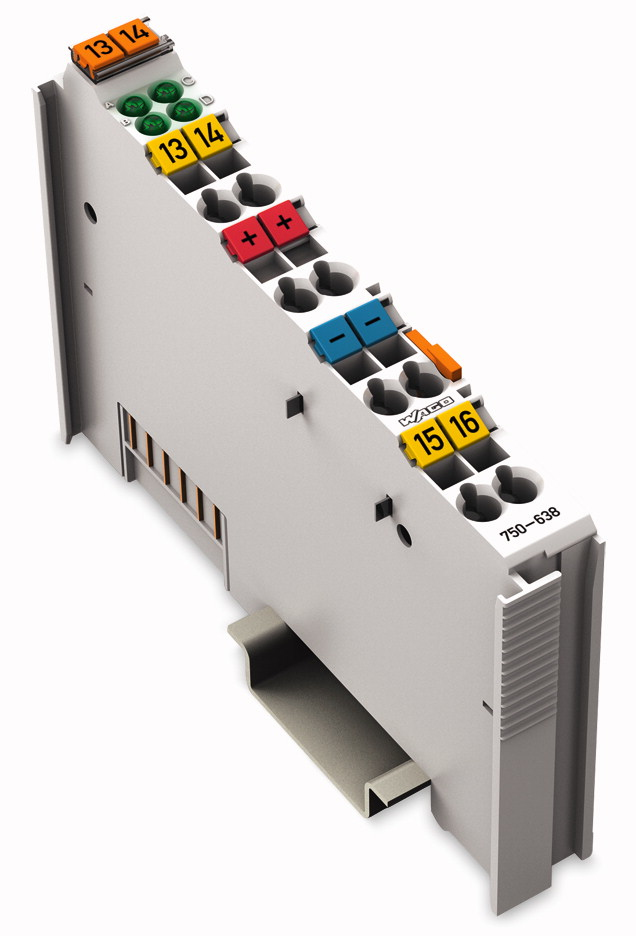

Wago 750-638 fieldbus module

Name: Wago 750-638
Brand: Wago

EAN: 4045454569105

MPN: 750-638

🚚 Select the country of delivery:

Delivery from:

Germany

Updating price ... 📣 Send Price inquiry Не поставляется

Delivery cost & estimated delivery time:

От

days

Sale and delivery by:

Mercatos.com

. . Imprint / ⭐ Reviews / Online Dispute Resolution Terms of Service Cancellation policy Data protection 💳 Payment Methods...

buy now I will buy itASK A QUESTION

Advertising *

Показать все предложения

See all offers

Where to buy and prices (Advertising *)

On Top

в наличии

to seller

* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Features

Switching frequency (max)	0.5 kHz
Conductor area (min)	0.08 mm²
Conductor area (max)	2.5 mm²
Strip length (max)	9 mm
Fire load	1.23 MJ
Vibration resistant	Y
AWG wire size (max)	14
Shock resistant	Y
AWG wire size (min)	28
Channels quantity	2 channels
Isolation	0.5 kV
Wire clamp type	Cage clamp

Power

Current consumption (field side)	8 mA
Current consumption (internal)	10 mA

2 up/down counter, 16 bits, 500 Hz <b>2 up/down counter; 16 bits; 500 Hz </b>
The I/O module has two counters that count 24VDC binary pulses independently of one another. The data is then transmitted to the control via the fieldbus.

The counters can be set or reset with the control bytes. A counter lock-out is also possible.

The control bytes also determine the direction of counting.
