Reflection
| Interinstrument agreement |
0.4 DE |
Technical details
| Spectral reporting |
10 nm |
| Short-term repeatability |
0.1 DE |
iSis XL OBC & MonacoPROFILER Platinum v4.8
In high production environments like photo processing, large format, fine art, and high speed digital printing, measuring color test charts to keep your color management profiles up-to-date can be a labor intensive and time consuming process. The i1iSis XL automatic chart reader sets a new standard in terms of speed, accuracy and handling – allowing you more time to focus on your customers.
The i1iSis XL with OBC bundle includes the following hardware and software:
- MonacoPROFILER Platinum software
- i1iSis XL (A3+) Chart Reader, the automated solution for high-speed measurement of A3 and tabloid size charts, reading thousands of patches in less than 10 minutes
- Optical Brightener Compensation Module (OBC), which compensates for color shifts caused by the Optical Brightening Agents used in many papers
Product Features:
The MonacoPROFILER Platinum i1iSis XL with OBC Bundle features:
MonacoPROFILER Platinum Software features the following to manage all of your color imaging devices and processes:
- Create custom profiles for: Monitors, Scanners, RGB/CMYK/PANTONE® Hexachrome and multi-ink [5,6,7,8] Printers and Digital Cameras
- Wizard-based interface guides you through the profile building process
- Advanced rendering engine delivers smooth, natural color
- Optimized color logic ensures color fidelity with maximum printability for any output technology, including inkjet, laser, offset, and flexo printing
- Unique editing tools offer unprecedented control for fine-tuning profile color
- Customize color compression of selective color
- Define/Lock output recipes for selective colors
- Customize gray-balance recipes to achieve optimum gray accuracy
- Edit output profiles using the most advanced features available and save your images in TIFF or DCS 2.0 format directly from the editor with your applied profiles embedded
- Create ICC link profiles with custom link options including black generation and black text preservation
- Import/export CGATS-compatible color data
- Average multiple patch sets to generate output profiles
- Create superior profiles using advanced black generation, paper color neutralization and advanced ink limiting features
- Re-linearization feature to solve device drift issues
- Harmonizes with X-Rite’s new ColorPort utility
- Includes PerfectPalette for building optimized spot-color palette
- Supports all industry standard targets including IT8.7/3, IT8.7/4 and ECI

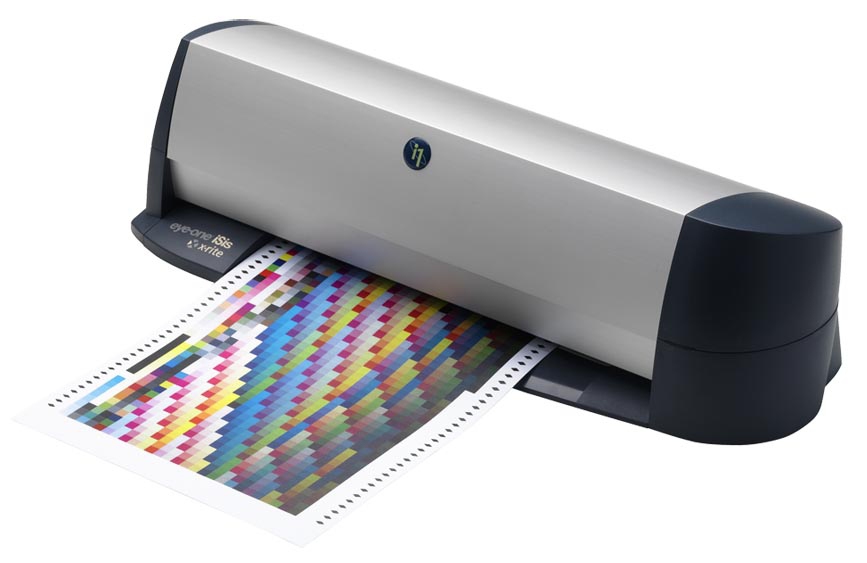

i1iSis XL (A3+) Automated Chart Reader
- The automated solution for high-speed chart measurements
- Switchable UV illumination to capture NoFilter and UVcut filter data in a single measurement cycle
- i1iSis A3+ allows you to measure an A3+ test chart with up to 2,500 patches, which can be printed on a single A3 page. Scans A3+ and tabloid size charts, reading thousands of patches in less than 10 minutes.
- Built-in vision system that offers high tolerance for how charts are aligned as they are fed into the system and automatically corrects for misalignment
- Barcode reading, for chart identification adds further ease of use and error safety
- Optical Brightener Compensation Module (OBC)
- Compensates for color shifts caused by the Optical Brightening Agents used in many paper mills and paper manufacturers to make yellowish paper appear whiter and brighter
- The color you measure with your color management device will be the same color you see in a viewing booth
- Designed for use with X-Rite's i1iSis family of automatic spectral chart readers and ProfileMaker or MonacoPROFILER profiling software
