Design
| Form factor |
Midi-Tower |
| Type |
PC |
| Number of expansion slots |
7 |
| Suitable for |
Home/Office |
| Maximum CPU cooler height |
160 mm |
| Maximum graphics card length |
330 mm |
| Side window |
N |
| Number of 3.5" bays |
4 |
| Number of 5.25" bays |
3 |
| Number of internal 3.5" bays |
4 |
| Number of 2.5" bays |
4 |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Power supply
| Power supply included |
N |
| Power supply location |
Bottom |
Cooling
| Front fans installed |
1x 120 mm |
| Maximum top fans |
2 |
| Maximum side fans |
2 |
| Side fans diameters supported |
140, 120 mm |
| Maximum front fans |
2 |
| Rear fans diameters supported |
120, 80 mm |
| Rear fans installed |
1x 120 mm |
| Maximum rear fans |
1 |
Ergonomics
| Reset button |
Y |
| Cable management |
Y |
Storage
| Number of hard drives supported |
8 |

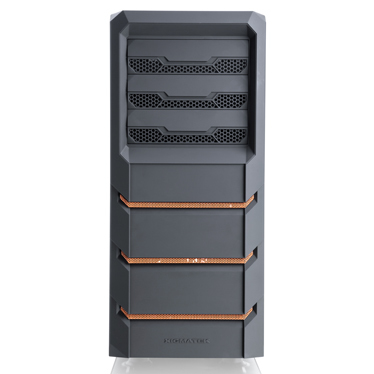

Álfar Orange mesh, Midi Tower, 2 x 120mm, 2 x USB 3.0, ATX/Micro-ATX/ITX
The Xigmatek Álfar mid-tower gaming chassis continues Xigmatek’s tradition of offering great value and performance in a mid-tower chassis. However, the Álfar is part of Xigmatek’s new generation of chassis with an emphasis not only on ergonomics and usability, but also on aesthetics as well. The gently sloping front bezel has small mesh accents which gives the chassis its clean, simple lines, but also suggests a more racy and aggressive side. With the growing popularity of 2.5” SSDs, the Álfar is designed to accommodate up to five 2.5” devices, while still maintaining an ample complement of 3 x 5.25”external and 4 x 3.5” internal drive bays. As with all of Xigmatek’s chassis designs, careful attention was given to convenience and performance features such as the ability to mount 330mm full-length graphics cards and up to 160mm tall side-blow tower coolers; cutouts to ease the mounting of coolers and for cable management are all standard features. Support for the latest USB 3.0 is interface standard is also built-in along with ample cooling capability with the ability to mount up to an additional seven side, front, top and bottom fans. The Xigmatek Álfar offers unparalleled value and performance in a mid-tower chassis that will provide years of use and satisfaction.
- Clean aesthetics with an aggressive, eye-catching design.
- Softly leather coating front bezel with orange, white or black iron meshes accents.
- Be able to mount 320mm full-length graphics cards and up to 160mm tall side-blow tower coolers.
- Supports 3 x 5.25” and 4 x 2.5”, 4 x 3.5”devices.
- 2 x USB 3.0 ports with backwards USB 2.0 compatibility.
- HD Audio connectors.
- Pre-installed 120mm silent rear fan and front LED fan, up to 7 additional side, front, top and bottom mounted fans for extreme cooling.
- Bottom mount PSU.
- 7 x PCI slots with thumb screws.
