Cooling
Rear fans installed |
1x 140 mm |
Maximum rear fans |
1 |
Maximum top fans |
4 |
Maximum side fans |
2 |
Front fans installed |
2x 120 mm |
Liquid cooling capability |
Y |
Rear fans diameters supported |
140 mm |
Side fans diameters supported |
230, 140, 120 mm |
Maximum front fans |
2 |
Design
Material thickness |
0.8 mm |
Illumination |
Y |
Form factor |
Midi-Tower |
Type |
Server |
Number of expansion slots |
10 |
Suitable for |
Gaming |
Number of 3.5" bays |
8 |
Number of 5.25" bays |
6 |
Number of internal 3.5" bays |
2 |
Number of 2.5" bays |
8 |
Side window |
Y |
Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
Power supply
Power supply included |
N |
Power supply location |
Bottom |
Interceptor Pro XQ Series - HPTX, 6x 5.25", 8x 2.5"/3.5" SATA-HDD, 10x PCI, 1x USB 3.0 + 2x USB 2.0 + HDaudio + Reset + Power

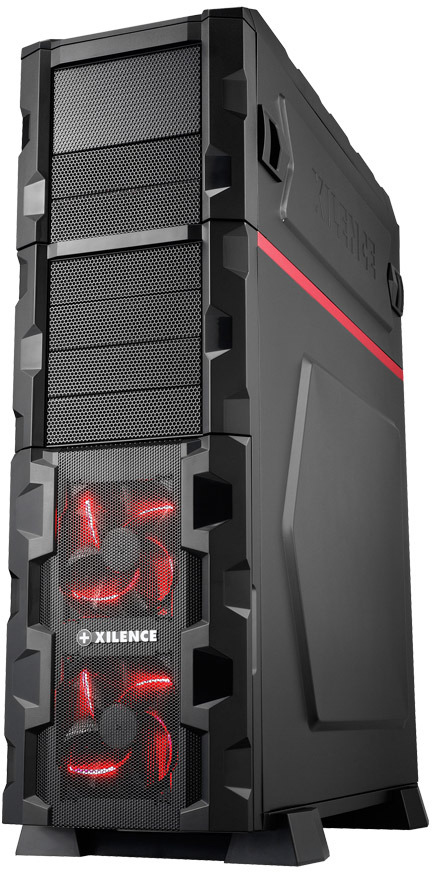

<b>INTERCEPTOR PRO</b>
The Interceptor PRO from Xilence represents an HPTX case of the very best quality. Its modular construction gives you the choice: You can decide if you would like to build a high end model with an extreme cooling system, or whether you would like to set up a space for both, your home media server and high end gaming system. Hot Swap SSD/HDD support, space for a triple and quad radiator, countless cable and hose routes as well as ten PCI slots all come together to present an unprecedented combination of practical case features. The thirteen possible case vents draw all of the fresh air through an air filter - this allows you to have continuous fun with your clean, highly capable system. Sufficient space for perfect cable management can be found between the rear wall of the motherboard and the side panel of the case. Four DVD slots are located in the front along with a total of ten Hot Swap bays, into which you can mount six 2.5/3.5" and four 2.5" drives, depending on your preference. These drives are cooled by two 120mm fans located in the door in front of the drive slots. The upper section houses USB 2.0 and 3.0 connections, audio inputs and outputs as well as a power and a reset button. The air output can be adjusted using a slide control.
line
Any hardware enthusiast is used to make regular changes to hardware solutions. Switching hard drives is particularly difficult and might also be risky. Data is often lost, as the sensitive SATA sockets break off or the drive itself is shaken too much during insertion or removal. The Interceptor solves this problem with numerous Hot Swap inserts. The drives are fixed into installation frames and can be slotted in from outside with ease. The data connections and energy supply are established automatically. So, there is no need to open the case.
In order to keep the system working both quietly and for longer, all of the sucking fans only draw filter air into the inner part of the case. These filters can be removed and cleaned without any great effort.
<b>Air filters are located:</b>
- In the front
- In the side panel
- Under the power supply
Cramped conditions quickly erode your desire to set up your system. To make sure that doesn't happen, the Interceptor case offers space for motherboards in the HPTX format. Endless cable routes and the cable management on the rear side of the case make sure that order can be maintained.
<b>Perfect cable management using:</b>
- Fixing loops to hold the cable
- Countless cable routes
- Space between the motherboard rear wall and the side panel
The Interceptor Pro is absolutely flexible. Depending on your requirements, you can install various front panels into the upper section of the case.
<b>The following are included:</b>
- 1x panel for an additional ARTX power supply
- 1x panel for an additional ITX system
- 1x panel for an additional 120mm fan
Support for a 360mm radiator and/or three 120mm fans + a 480mm radiator and/or four 120mm fans.
<b>Possible combinations:</b>
- 1x 360mm radiator + 1x 480mm radiator
- 1x 360mm radiator + 4x 120mm fans
- 1x 360mm radiator + 3x 140mm fans
or
- 1x 480mm radiator + 3x 120mm fans
- 1x 480mm radiator + 2x 140mm fans
or
- 1x 360mm radiator
- 1x 240mm radiator
- 1x 120mm radiator + 1x 120mm fans
