Memory
| Supported memory types |
DDR3-SDRAM |
| Supported memory module capacities |
4GB, 2GB, 1GB |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
Graphics
| On-board graphics adapter |
Y |
| OpenGL version |
2.0 |
| DirectX version |
10 |
| Graphics adapter family |
AMD |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x1 slots |
1 |
Back panel I/O ports
| WiFi-AP antenna jack |
2 |
| DVI-I ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Headphone outputs |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| PS/2 ports quantity |
1 |
Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
6 |
| Number of SATA III connectors |
6 |
Processor
| Processor frequency |
1.5 GHz |
| Processor cores |
2 |
Performance
| Cooling type |
Active |
| Audio system |
HD |
| Motherboard chipset family |
AMD |
| Component for |
PC |
Additionally
| Ethernet LAN connection |
Y |
| Dual-link DVI |
Y |
| Graphics |
Radeon HD 4200 |
| Chipset |
AMD M880G |
| Ethernet LAN (RJ-45) ports quantity |
1 |
AMD M880G/SB820M, AMD Turion II Neo K625 (1.5GHz), Radeon HD 4200, DDR3-SDRAM, Gigabit Ethernet, Wi-Fi, mini-ITX

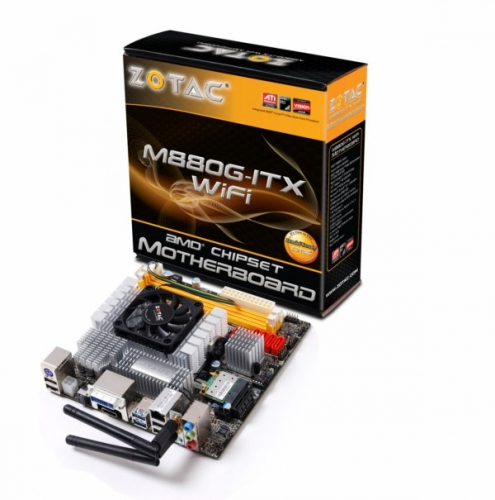

Experience a perfect synergy of performance and energy-efficiency with the ZOTAC M880GITX WiFi platform featuring AMD® Vision™ technology. The ZOTAC M880G-ITX WiFi combines the power of a AMD® Turion™ II Neo K625 dual-core processor with a ATI Radeon™ HD 4200 series graphics processor to deliver stunning high-definition video playback, excellent multi-tasking performance and superior energy-efficiency in a Mini-ITX.
ATI Avivo™ HD technology delivers full-hardware decode of Blu-ray high-definition content for flawless playback and vivid visuals with the ZOTAC M880GITX WiFi. Expansion with the ZOTAC M880G-ITX WiFi is plentiful with one PCI Express x1 slot, 6 SATA 6.0 Gb/s, 2 USB 3.0 ports and up to 6 USB 2.0 ports.
