Data transmission
MAC address table |
16000 entries |
Switching capacity |
240 Gbit/s |
Throughput |
178.6 Mpps |
Operational conditions
Heat dissipation |
325.97 BTU/h |
Management features
MIB support |
RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011/2012/2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Security
Static port security |
N |
SSH/SSL support |
Y |
MAC address filtering |
Y |
Networking
VLAN support |
Y |
10G support |
Y |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
10 |
SFP+ module slots quantity |
2 |
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
Copper ethernet cabling technology |
1000BASE-T, 10GBASE-T |
Performance
Packet buffer memory |
2 MB |
Protocols
Management protocols |
SNMP v1, SNMP v2c, SNMP v3, RMON 1/2/3/9 |
Design
Safety |
LVD, BSMI |
Form factor |
1U |
Rack mounting |
Y |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |

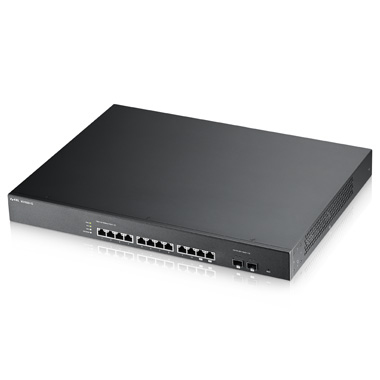

XS1920 Series, 12-port 10GbE Smart Managed Switch
10 Gigabit Smart Switch Simplifies SMB Network Upgrades
In today’s rapidly changing world of cloud-based products and services, it can be difficult for large enterprises, as well as small and medium-sized businesses (SMBs) to decide how to best handle increased data and the demands of applications like VoIP, video streaming and IP surveillance. In this environment, networks need to be simultaneously faster and more reliable, as well as easy to set up and maintain. To help meet these challenges, ZyXEL has introduced the XS1920-12, a 10GbE smart switch for SMB that economically upgrades any network to high-speed 10GbE bandwidth.
Affordable 10GbE network connectivity for SMB
When attempting to meet today’s demand for more bandwidth, SMBs often face increased expenditures, difficult deployments and other complex issues. The XS1920-12 has been designed to overcome these challenges with ZyXEL’s new 10GbE smart switch technology, which features ten (10) copper 10GbE connections and two (2) 10GbE SFP+ combos for 10G fiber links, offering additional flexibility for tricky deployments. The XS1920-12’s small port count design makes it the ideal choice for small businesses looking for an affordable network switch solution.
Upgrade the network with investment-protection
Upgrading with the XS1920-12 is a hassle-free operation. Backward-compatibility for Gigabit network allows SMBs to leverage existing Cat5/Cat5e infrastructure. The XS1920-12 also future-proofs networks with IPv6 support and 10GbE connectivity when an SMB is ready to convert to Cat6A and above cabling. A Cat6A or above cabled network is able to use RJ45 connectors to provide higher bandwidth up to 100 m with 10GbE copper.
ZyXEL One Network experience
Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
Robust features to ensure network availability
The XS1920-12 protects users from network disruptions caused by internal errors or outside attack and ensures uninterrupted connectivity through several key features. Loop Guard helps networks avoid service disruptions caused by switching loops, and IP Source Guard (IPSG) shields your network from MAC spoof and ARP spoof attacks. Additionally, attacks such as BPDU, ARP and IGMP can target network facilities. However, CPU protection guarantees that a network continues to operate, even while under attack. In addition, dual images and configuration support guarantee network availability and reliability. These are just some of the ways that the XS1920-12 guarantees headache-free network connectivity for SMBs.
Smart management and advanced functionality
With features like L2 switching capacity, the XS1920-12 is able to function as a core switch, making it the cost-effective switching solution for SMBs. As part of the smart switch series, the XS1920-12 allows administrators to perform simplified network management via a user-friendly Web management interface.
