Performance
| Motherboard form factor |
Mini ITX |
| Audio system |
VIA VT1705 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
667, 800 MHz |
| Non-ECC |
Y |
| Number of memory slots |
2 |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
2 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| ATX Power connector (24-pin) |
Y |
| Number of SATA II connectors |
2 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
384 MB |
| On-board graphics adapter |
N |
| Graphics adapter family |
Intel |
Packaging content
| Trial software |
Y |
| Drivers included |
Y |
| Quick installation guide |
Y |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

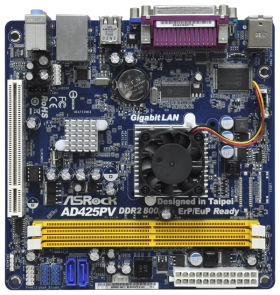

Intel Atom Processor D425 (1.8 GHz), DDR2 800/667, Intel GMA 3150, DirectX 9.0, 1x PCI, 2x SATA II, Gigabit Ethernet
EuP / ErP Ready
EuP / ErP, stands for Energy Using Product, was a provision regulated by European Union to define the power consumption for the completed system. According to EuP / ErP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP / ErP standard, the EuP / ErP ready motherboard and the EuP / ErP ready power supply are required. (The EuP / ErP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption.).
ASRock AIWI
ASRock AIWI - Turn Your iPhone Into Game Joystick
Playing Games By Holding Your iPhone or iPod touch
Using AIWI to connect your apple devices to ASRock system, and you can interact with the PC games with delicate touches and body motion while getting responsive shakes and vibrations that correspond from the game stores.
OC DNA
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
