Back panel I/O ports
| Serial ports quantity |
1 |
| Parallel ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
Internal I/O
| Floppy disk drive connector |
Y |
| Power fan connector |
Y |
| Number of Parallel ATA connectors |
2 |
| CD/AUX audio in |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
Expansion slots
| AGP x8 slots |
1 |
| PCI slots |
4 |
Graphics
| On-board graphics adapter |
N |
Memory
| Non-ECC |
Y |
| Supported memory types |
DDR-SDRAM |
| Unbuffered memory |
Y |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Performance
| Motherboard chipset family |
NVIDIA |
| Audio system |
C-Media CM6501 |
| Cooling type |
Passive |
| Component for |
PC |
Processor
| Processor system buses supported |
800 MHz |
Networking
| Networking features |
Fast Ethernet |
BIOS
| ACPI version |
1.1 |
| BIOS memory size |
0.5 MB |
| BIOS type |
AMI |
Additionally
| Chipset |
NVIDIA nForce3 250 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

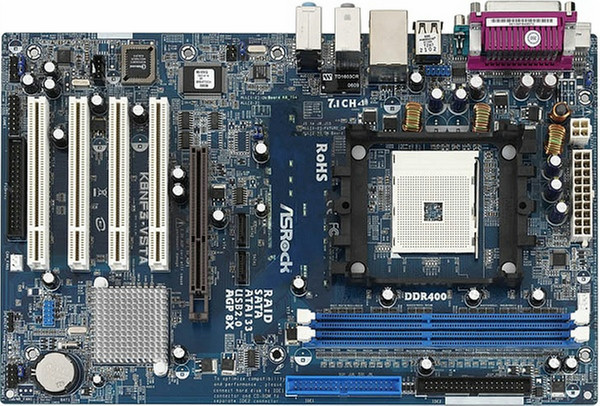

K8NF3-VSTA - Socket 754, AMD Athlon 64/Sempron, FSB 800 MHz, 2 x DDR 400/333/266MHz, Fast Ethernet, SATA, ATX
- Socket 754 for AMD Athlon™ 64 and Sempron processors;
- NVIDIA® nForce3 250 Chipset;
- FSB 800MHz, Hyper-Transport Technology and AMD Cool 'n' Quiet Technology;
- Supports DDR400/333/266 with 2 DIMM slots, maximum capacity up to 2GB;
- Hybrid Booster - ASRock Safe Overclocking Technology;
- Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/ PCI Buses
- 1 x AGP 8X slot;
- 2 x SATA 1.5Gb/s connectors, supports RAID (RAID 0, 1, JBOD) and "Hot Plug" functions;
- 7.1 CH Windows® Vista™ Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture), 10/100 Ethernet LAN;
- Windows® Vista™ Premium 2007 Logo Ready;
- ASRock 8CH I/O: 4 ready-to-use USB Ports, 7.1 channel audio jacks.
