Performance
| Motherboard form factor |
ATX |
| Intel Rapid Storage Technology |
Y |
| Motherboard chipset family |
Intel |
| Audio output channels |
7.1 channels |
| Intel Extreme Memory Profile (XMP) |
Y |
| PC health monitoring |
FAN, Temperature, Voltage |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133, 2400, 2800, 2933, 3200, 3600, 3733 MHz |
| Non-ECC |
Y |
| ECC |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
128 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
6.0 |
Internal I/O
| USB 2.0 connectors |
3 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
2 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| Number of M.2 (E) slots |
1 |
Networking
| Wake-on-LAN ready |
Y |
| LAN controller |
Intel I219-V |
| Ethernet interface type |
Gigabit Ethernet |
Graphics
| Maximum graphics adapter memory |
1024 MB |
| Graphics adapter family |
Intel |
| Number of displays supported |
3 |
Back panel I/O ports
| WiFi-AP antenna jack |
2 |
| DVI-D ports quantity |
1 |
| Thunderbolt ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
5 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Packaging content
| Trial software |
AntiVirus |
| Drivers included |
Y |
| Utilities included |
Y |
| Quick installation guide |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
3 |
Processor special features
| Intel® Smart Response Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
Processor
| Intel Core i3/i5/i7 series |
i3-6xxx, i5-6xxx, i7-6xxx |
Additionally
| Chipset |
Intel Z270 |
| Graphics |
HD Graphics |
| Intel Optane technology ready |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

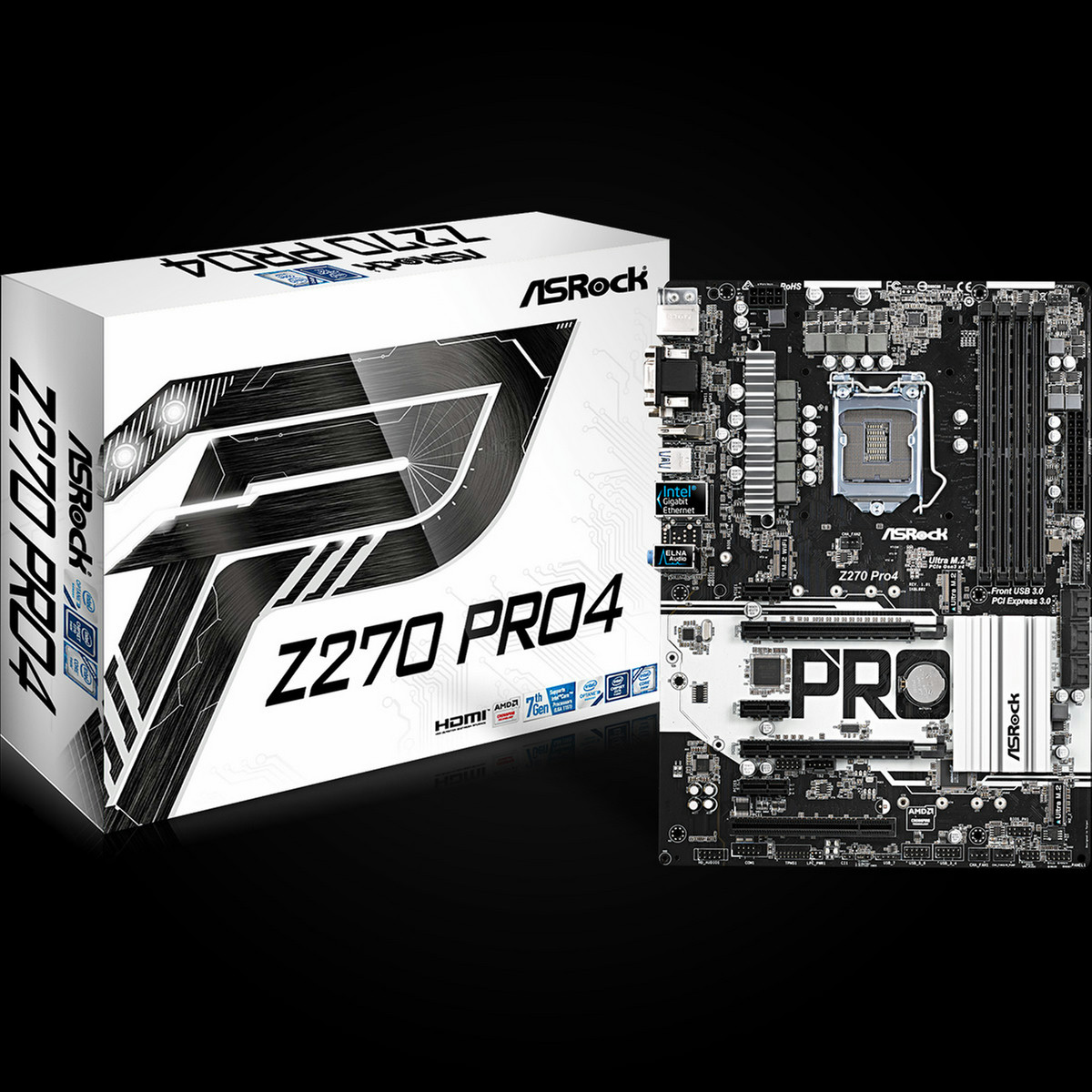

i7/i5/i3/Pentium/Celeron Processors (Socket 1151), 4x DDR4 max 64GB, AMD Quad CrossFireX, 6x SATA3, 8 USB 3.0
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
USB Type-C
A latest reversible USB Type-C design that fits the connector either way.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redenes a new standard of high performance and responsiveness.
User friendly UEFI & EZ Mode
ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
