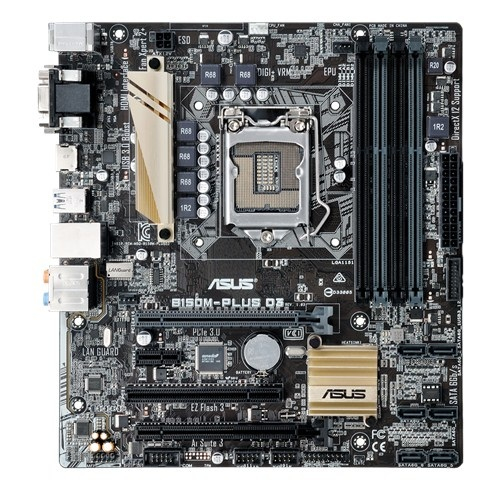

ASUS B150M-PLUS D3 Intel B150 LGA 1151 (Socket H4) Micro ATX motherboard

ASUS B150M-PLUS D3 Intel B150 LGA 1151 (Socket H4) Micro ATX motherboard

EAN: 4712900149401
MPN: 90MB0M80-M0EAY0
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor Micro ATX
Motherboard chipset family Intel
Audio output channels 7.1 channels
Intel Extreme Memory Profile (XMP) Y
Component for PC

Memory

Supported memory clock speeds 1866, 1333, 1600 MHz
Non-ECC Y
Unbuffered memory Y
Supported memory types DDR3-SDRAM
Memory channels Dual
Memory slots type DIMM
Maximum internal memory 64 GB

BIOS

BIOS memory size 128 MB
BIOS type UEFI AMI
Clear CMOS jumper Y
ACPI version 5.0

Internal I/O

USB 2.0 connectors 2
S/PDIF out connector Y
Number of SATA connectors 6
ATX Power connector (24-pin) Y
USB 3.0 (3.1 Gen 1) connectors 1
Number of SATA III connectors 6
Supported storage drive interfaces Serial ATA III
CPU fan connector Y
Number of chassis fan connectors 2
Number of EATX power connectors 1
Front panel audio connector Y

Back panel I/O ports

DVI-D ports quantity 1
PS/2 ports quantity 1
USB 2.0 ports quantity 2
Headphone outputs 1
Microphone in Y
USB 3.0 (3.1 Gen 1) Type-A ports quantity 3
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1

Networking

LAN controller Realtek RTL8111H
Ethernet interface type Gigabit Ethernet

Expansion slots

PCI Express x16 (Gen 3.x) slots 2
PCI Express x1 (Gen 3.x) slots 1

Graphics

Parallel processing technology support Quad-GPU CrossFireX

Processor

Processor socket LGA 1151 (Socket H4)
Compatible processor series Core i5, Core i7, Celeron, Pentium, Core i3

Weight & dimensions

Width 221 mm
Height 244 mm

Additionally

Chipset Intel B150
Ethernet LAN connection Y
Ethernet LAN (RJ-45) ports quantity 1
Intel B150, LGA1151, 4xDDR3, 6xSATA3, VGA, DVI, mATX Supreme micro-ATX B150 with 5X Protection II for dependable stability, reversible USB Type-C connectivity, and LED-illuminated audio shielding

- 5X Protection II – Advanced hardware safeguards for all-round protection
- DDR3/DDR3L memory compatibility
- USB Type-C for convenient connectivity
- Epic gaming audio with LED-illuminated shielding
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance

Advanced Hardware Safeguards

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard

Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM

Precision control for stable power

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

ESD Guards

Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

1000+
Compatible Devices

Including CPUs, memory modules,
graphics cards and more.

DDR3/3L
Compatibility

More flexibility, more compatibility
- support for DDR3 and DDR3L.

7000+
Validation Hours

Extensive testing for extreme reliability,
compatibility and safety.

Superb Performance

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Flash 3

Update the latest BIOS via the internet, and from within the BIOS.

S.M.A.R.T

Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.

Q-Fan Control

You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!

My Favorites

Quickly find tuning options and add preferred tools to the list.

EZ Mode

Intuitive Graphical Fan Control:

Fine-tune individual fans simply by dragging a curve with the mouse.

EZ XMP:

Improve your DRAM performance with a click.

SATA Information:

View SATA port details for easy device recognition.

Fast Clock Adjustment:

Use mouse controls to change the time and date.

Advanced Mode

Last Modified Log:

Track last change and save preferred profiles onto a USB drive.

SATA Port Renaming:

Rename SATA ports for easy identification.

Ultrafast Transfer Speed

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

USB Type-C for convenient connectivity

USB Type-C (USB-C) delivers future device compatibility and high-speed USB connectivity of 5Gbit/s from a slim, reversible port.
- 1/3 smaller — than traditional USB Type-A
- Reversible ease — any-way-up design means USB connections are made first time, every time
- Future-proof compatibility — compatible with the latest devices today and the exciting new trends of tomorrow

Gaming Audio

Easy PC DIY

Safe motherboard mounting

Component-free areas to minimize damage risk

Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!

Q-Slot

Effortless PCI Express component removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM

Easy memory removal

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Optimized Cooling

Fan Xpert 2+

Advanced fan controls

With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!
- Auto-Tuning Mode: Scans and detects all fan characteristics for single-click customization.
- Extreme Quite Mode: Reduces CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
- RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing to you fix the fan speed.

One-Stop Control

AI Suite 3

One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Intel CPU and chipset features

Intel® B150 Express Chipset

The Intel® B150 Express is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® B150 Express chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR3L memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.

Intel® SBA support

Intel® SBA (Small Business Advantage) is a combination of hardware and software that provides unique security and productivity capabilities designed for small businesses. Intel® SBA requires MEI drivers (AMT host software kit) be installed.

Platform requirements:
Windows® 7 (32/64-bit) / 8.1 (64-bit) / 10 (64-bit)
PCH with 6th-generation Intel® Core™ processor (100 Series platforms) with 6.5MB Intel® Management Engine (ME) 11.0 firmware installed

CPU and chipset requirements:
Intel® Core™ i3/i5/i7 with one of these chipsets: B150, H170, Q170
The Intel® Management Engine software kit must be installed (the Local Manageability Service and the Intel ® Management Engine Interface must be installed and running.)
