Ports & interfaces
Serial ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Graphics
Maximum graphics adapter memory |
8 MB |
Processor
Number of processors supported |
2 |
Motherboard southbridge |
Intel ICH10R |
Memory
Supported memory types |
DDR3-SDRAM |
Supported DIMM module capacities |
16GB, 1GB, 2GB, 4GB, 8GB |
Maximum UDIMM memory |
48 GB |
Maximum internal memory |
192 GB |
Other features
Graphics adapter family |
Aspeed |
Power
Number of power supply units |
2 |
Power supply |
770 W |
Storage
Hot-swap hard drive bays |
Y |
Number of hard drives supported |
8 |
Expansion slots
PCI Express slots version |
1.0, 2.0 |
Networking
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Additionally
Chipset |
Intel 5520 |
System bus data transfer rate |
6.4 GT/s |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
3 |

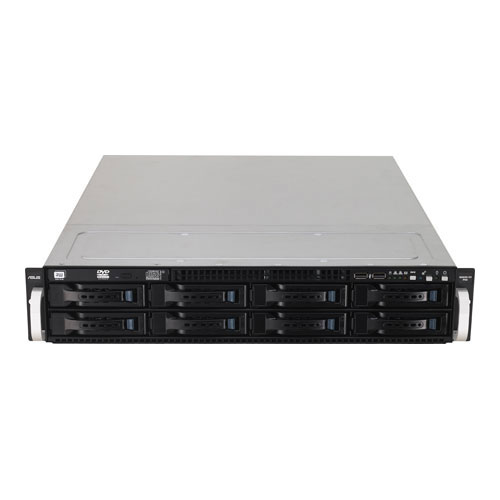

2 x Socket LGA1366, Intel 5520 IOH + NVIDIA NF200, 18 x DDR3 Max. 192GB RDIMM/Max. 48GB UDIMM, SATA/SAS, 8 x Hot-swap 3.5" HDD, 2 x Intel 82574L + 1 x Mgmt LAN, 2U
First ever high density 2U parallel computing design
Leading advanced system architecture
- Features dual all-new Intel® Xeon® 5600 series processors with Intel® Core™ microarchitecture for significant performance increases
- Supports 18 DIMM slots and up to 48GB/144GB high scalability memory for intense applications. DDR3 modules deliver higher speeds and more bandwidth with lower power consumption
- Embeds up to four NVIDIA® Tesla™ M2050/M2070/M2090 GPUs on full PCI-E Gen2 x16 slots with up to 2.66 teraflops, doubling precision performance
- The NVIDIA® Tesla™ M2090 GPU Computing Module is the world’s fastest parallel computing processor for HPC
8+1 flexible expansion
- Eight PCI-E Gen2 x16 slot design supports up to four double-deck GPU computing cards for professional graphics
- Flex-E technology allows automatic switching between one PCI-E x16 and two PCI-E x8 links
- Additional PCI-E riser module compatible with both half-length/low-profile PCI-E cards and ASUS PIKE series cards
Intelligent system fan control
- Three independent smart system fans, two for GPU areas and one for general motherboard cooling
- Adjusts fan speed automatically according to system load to optimize cooling and energy saving
Flexible high storage capacity
- Designed with eight hard drive bays to support SAS or SATA drives
- Optional ASUS PIKE meets the various requirements of RAID functionality
High reliability
- 1600W 80PLUS Platinum power supply delivers reliable and highly efficient power
- Hot-swap hard drive design allows downtime-free drive replacement
Remote control and management
- Bundled ASMB4-iKVM module offers advanced server management
- KVM-over internet provides OS-independent manageability
- Ideal for remote office applications
