Internal I/O
| USB 2.0 connectors |
3 |
| ATX Power connector (24-pin) |
Y |
| S/PDIF out connector |
Y |
| Number of chassis fan connectors |
3 |
| Front panel audio connector |
Y |
| Number of EATX power connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| EPS power connector (8-pin) |
Y |
| Number of SATA III connectors |
6 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| Power fan connector |
Y |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
UEFI |
| Clear CMOS jumper |
Y |
Other features
| Controller (2nd) interface type |
ASMedia PCIe SATA |
| Controller interface type |
AMD SB950 |
Processor
| Maximum number of SMP processors |
1 |
Memory
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Unbuffered memory |
Y |
| Non-ECC |
Y |
Expansion slots
| PCI Express x16 slots |
3 |
| PCI slots |
1 |
| PCI Express x1 slots |
2 |
| PCI Express slots version |
2.0 |
| PCI Express configurations |
2x8, 1x16, 1x1 |
Performance
| Component for |
PC |
| Cooling type |
Passive |
| Audio system |
Realtek ALC892 |
| Motherboard chipset family |
AMD |
| Overclocking features |
ASUS C.P.R.(CPU Parameter Recall) |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| eSATA ports quantity |
2 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| PS/2 ports quantity |
1 |
Packaging content
| Quick installation guide |
Y |
| Drivers included |
Y |
| Trial software |
Antivirus |
Graphics
| Discrete graphics support |
Y |
| On-board graphics adapter |
N |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5.2 GT/s |
| Chipset |
AMD 990X |

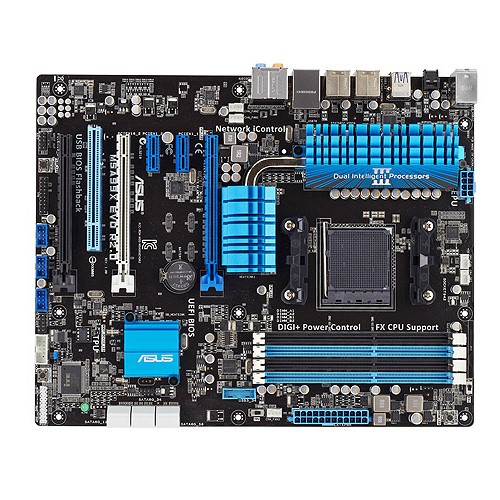

AMD AM3+, AMD 990X/SB950, 4 x DIMM DDR3, 6 x SATA 6Gbps, 2 x eSATA 6Gbps, 3 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 1 x PCI, 7.1ch. HDA, Gigabit LAN, 4 x USB3.0, 14 x USB2.0, ATX
<b>CPU and DRAM Digital Power Design for a 100% Performance Boost on AMD 990X with Windows 8 Support</b>
- Dual Intelligent Processors 3 with New DIGI+ Power Control - Full Hardware Control. Total Performance Tuning.
- Remote GO! - One-stop PC Remote Control and Home Entertainment
- USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
- Network iControl - Real-time Network Bandwidth Control
- DirectKey - A Dedicated Button to Access the BIOS Directly
- USB BIOS Flashback - Easy, Worry-free USB BIOS Flashback with Hardware-based Design
- UEFI BIOS - Flexible & Easy BIOS Interface
- Windows 8 Ready – Assured Compatibility
