Weight & dimensions
| Radiator depth |
140 mm |
| Radiator height |
27 mm |
| Fan thickness |
25 mm |
| Radiator width |
322 mm |
| Fan diameter |
140 mm |
Technical details
| Supported processor sockets |
Socket AM2, Socket AM3, Socket AM4, Socket FM1, Socket FM2, LGA 2011-v3 (Socket R) |
| Maximum airflow |
113 cfm |
| Pump motor speed (max) |
2100 RPM |
| Radiator |
Y |
| Fan |
Y |
| Noise level |
43 dB |
| Quantity |
1 |
| Number of fans |
2 fan(s) |
| Purpose |
Processor |
Design
| Radiator material |
Aluminium |
113 CFM, 3.99mm-H2O, 43dB, 2100RMP

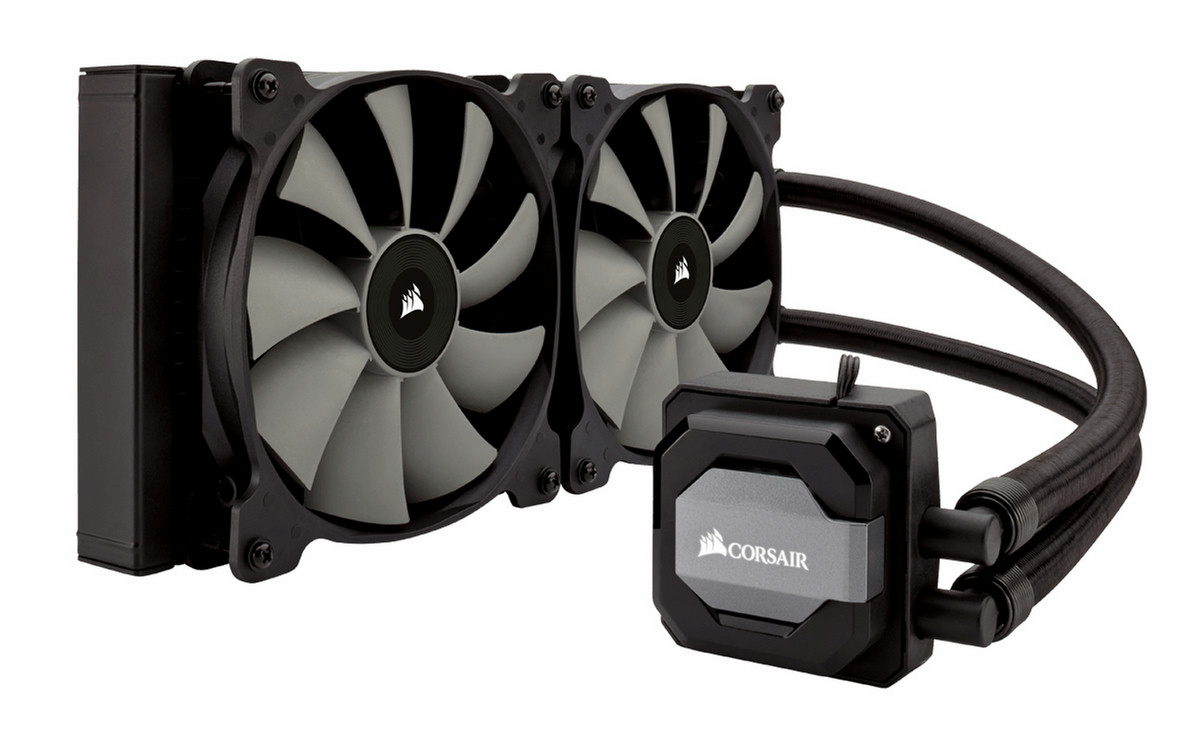

he Hydro Series H110i is an extreme performance, all-in-one liquid CPU cooler for cases with 280mm radiator mounts. The 280mm radiator and dual SP140L PWM fans provide the excellent heat dissipation you need for highly overclocked CPUs. It’s Corsair Link compatible, so you can customize cooling performance, monitor system temperature, and change the color of the RGB LED lighting.
280mm radiator
The secret to fast, efficient cooling is maximizing cooling surface area. If your PC case has dual 140mm fan mounts spaced for a 280mm radiator, the H110i lets you take advantage of your case’s full cooling potential.
Advanced SP140L PWM fans
The included 140mm fans are custom-designed for high static pressure air delivery with minimum turbulence and noise. They’re PWM controlled, so you can customize the fan speed to find the optimal balance of cooling and noise.
Built-in Corsair Link
Attach the included Corsair Link cable to a USB header on your motherboard and download the free Corsair Link software to unlock even more power. You can customize cooling performance, monitor coolant and CPU temperatures, and change the color of the RGB LED lighting from the default white to match your system, or to change color based on temperature readings and other inputs.
High-performance CPU cooling made simple
The H110i is a closed loop design that comes pre-filled. It includes a modular, tool-free mounting bracket for faster installation, and it features improved coldplate and pump designs for highly tuned efficiency.
About Hydro Series Liquid CPU Coolers
Corsair Hydro Series CPU coolers give you the power of liquid cooling in a compact, easy-to-install package. They offer superior cooling for higher overclocking performance, without the complexity of traditional water cooling kits.
