Design
| Supported motherboard form factors |
ATX, Micro-ATX |
| Number of 5.25" bays |
3 |
| Number of 3.5" bays |
7 |
| Side window |
N |
| Number of 2.5" bays |
7 |
| Maximum graphics card length |
410 mm |
| Maximum CPU cooler height |
170 mm |
| Number of expansion slots |
7 |
| Form factor |
Midi-Tower |
| Type |
PC |
Cooling
| Top fans diameters supported |
120, 140, 180, 200 mm |
| Maximum front fans |
4 |
| Side fans diameters supported |
120, 140 mm |
| Rear fans diameters supported |
120 mm |
| Maximum side fans |
2 |
| Maximum rear fans |
1 |
| Maximum top fans |
6 |
| Maximum bottom fans |
2 |
| Rear fans installed |
1x 120 mm |
| Front fans installed |
1x 120 mm |
| Bottom fans diameters supported |
120, 140 mm |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

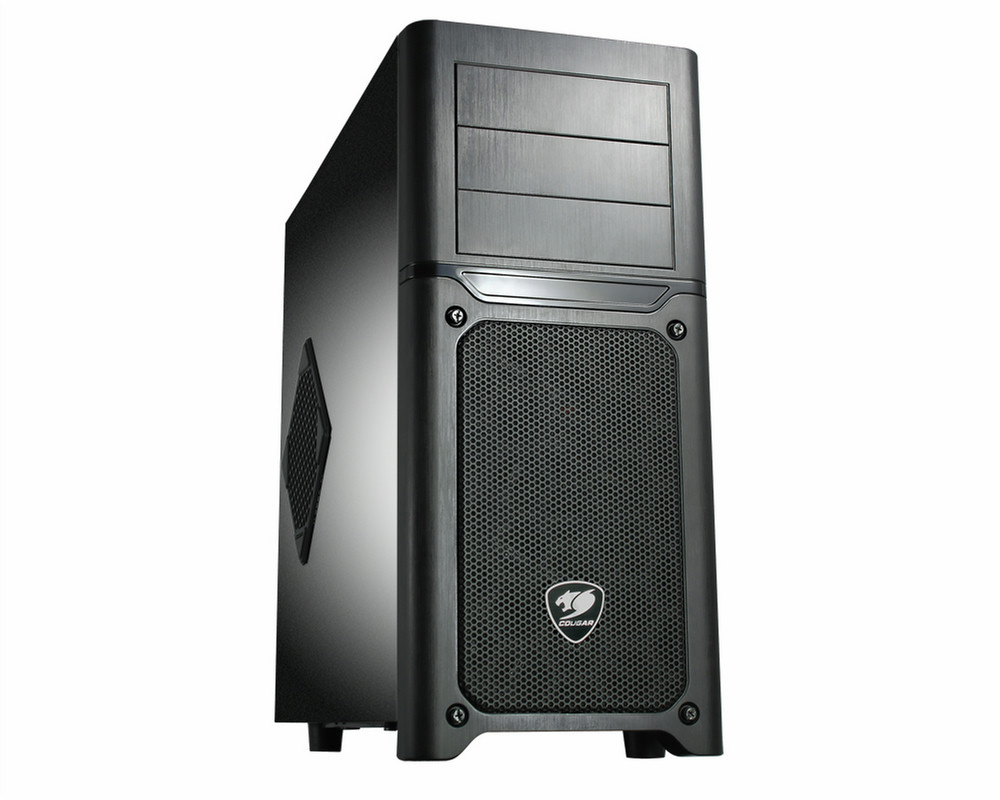

Middle Tower, Micro ATX / ATX, USB3.0 x 2/USB2.0 x 2, Mic x 1, Audio x 1, Black
- Sleek modernistic look with hair-lined surface front panel design
- Superior capacity for longer high-end graphics cards up to 300mm, 330mm & 410mm. (depending on varies graphics cards requirement to change position with HDD bracket)
- Best ventilation solution and support for 7 fans:
- front 120mm fans x 2 / 140mm fans x 2
- top 120mm fans x 2 / 140mm fans x 2 / 180mm fan x 1 / 200mm fan x 1
- bottom 120mm fan x 1 / 140mm fan x 1
- rear 120mm fan x 1
- side 120mm fan x 1 / 140mm fan x 1
- Lots of room for cable feedthrough on the MB tray for easy routing and hiding cables, and provide a better airflow and neatness of system building
- Advanced dual USB3.0 for maximum data transfer speed
- 7 PCI slots provide flexibility for multiple graphics cards solutions
- Screw-less mechanisms on 5.25’’devices
- 3.5’’HDD trays x 7 (compatible for installing 2.5’’HDDs/SSDs x 7)
- Provide 2.5’’HDD trays x 3 (depending on the graphics cards length)
- Installation opening in the MB tray for easy upgrade CPU cooler
- Vented slot bezels for better cooling performance
- Removable air filters on the bottom cover & side cover to prevent dust from entering the enclosure. (magnet filters are easy to remove and clean)
- High quality and game-style interior black coating
