Ports & interfaces
| Interface |
RS-232/ USB/ Wand/ KW |
Scanning
| Pitch reading angle |
-5 - 55 ° |
| Decoding standards |
1D/GS1 DataBar\n16K\n49 |
| Tilt angle |
-20 - 20 ° |
| Maximum range |
0.978 m |
| Working distance |
21 mm |
| Sensor type |
Laser |
| Scan speed |
35 sec/page |
| Yaw reading angle |
-60 - 60 ° |
Other features
| Light source |
630 - 680 |
| Safety |
CDRH 21 CFR 1040, EN60825-1, EU RoHS |
Power
| Input voltage |
4 - 30 V |
| Power consumption |
420 mA |
Additionally
| Scan type |
1D |
| Wireless technologies |
Wired |

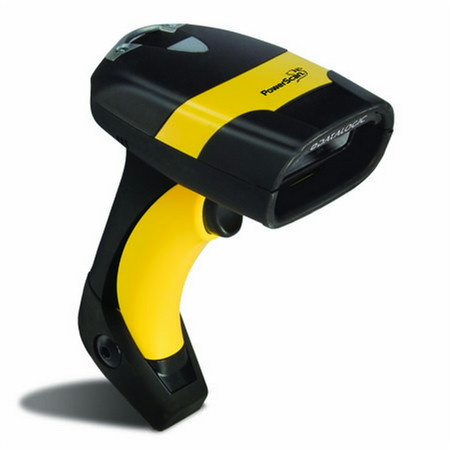

PowerScan PD8330 - 1D/GS1, 420 mA, 630 - 680 nm VLD, 2.5 - 97.8 cm, RS-232, USB, 295g
The PowerScan 8000 product series is Datalogic Scanning’s premium line of rugged industrial handheld data collection products. The PowerScan PD8300 laser scanner offers state-of-the-art performance in a corded industrial product.
The PD8300 reader features Datalogic’s exclusive 3 Green Lights (3GL™) for superior good read feedback. The patented ‘Green Spot’ directly on the code, and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle. Superior reading performance is enhanced by Datalogic’s patented PuzzleSolver™ technology for fast and accurate reading of standard, poorly printed and damaged codes.
The PD8300 reader’s mechanics have been developed and tested to withstand extreme environmental conditions maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan intensive operations. A built-in metal tether hook for suspended applications ensures workplace productivity.
All models have multi-interface capabilities built-in featuring the most popular interfaces; RS-232, Keyboard Wedge, Wand Emulation and USB. The Datalogic Aladdin™ configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Features:
- Optics available in Standard Range (contact up to over 1.0 m / 3.3 ft) and Auto Range (10 cm / 4.0 in to over 10 m / 33.0 ft).
- Datalogic 3GL™ and loud beeper for good read feedback.
- Built-in multiple interface (RS-232, Keyboard Wedge, Wand and USB).
- Undecoded Laser Output Model.
- Operates over a wide range of temperatures.
- Water and Particulate Sealing Rating: IP65.
- Drop resistance to 2.0 m / 6.5 ft.
