Weight & dimensions
| Width |
305 mm |
| Depth |
225 mm |
Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Audio output channels |
7.1 channels |
| Audio system |
Realtek ALC889 |
| RAID levels |
1, 10, JBOD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 1866, 2400 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.5 V |
| Memory channels |
Dual |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AWARD |
| Clear CMOS jumper |
Y |
| ACPI version |
1.0b |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| Supported storage drive interfaces |
Serial ATA III |
| Front panel audio connector |
Y |
Other features
| Controller interface type |
iTE IT8720 |
| Compatible operating systems |
Windows XP, Vista, 7 |
Expansion slots
| PCI slots |
3 |
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
2 |
| PCI Express slots version |
2.0 |
Networking
| LAN controller |
Realtek RTL8111E |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Networking features |
Gigabit Ethernet |
Packaging content
| Drivers included |
Y |
| Bundled software |
Norton Internet Security OEM |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| USB 2.0 ports quantity |
6 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
Processor
| Compatible processor series |
AMD A, AMD E2 |
Additionally
| Chipset |
AMD A75 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

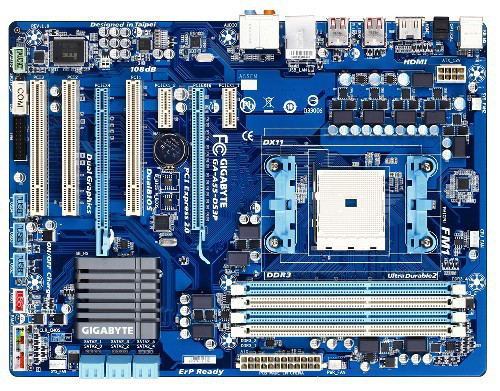

GA-A55-DS3P, FM1, AMD A75, DDR3, SATA3, USB 2.0, Gigabit Ethernet, ATX
GIGABYTE Super4™ motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series/E-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE Super4™ motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.
Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFireX™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Delivering native support for DDR3 memory up to 2400MHz, GIGABYTE Ultra Durable series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
All GIGABYTE Super4™ motherboards boast specific features that guard against system malfunction and ensure extended system longevity, including GIGABYTE DualBIOS™ to ensure that you never experience system failure due to BIOS corruption. Additionally, each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer. All Super4™ motherboards also use Solid Capacitors design that guarantee system longevity with a minimum 50,000 hrs lifespan.
GIGABYTE Super Speed ensures that you’re always on the cusp of PC performance, data transfer and device charging speeds. GIGABYTE’s unique Ultra Durable™ series technology makes sure that your AMD processor is running at optimal performance levels, while GIGABYTE 3x USB power means better device compatibility and also allows iPad, iPhone and iPod devices to charge up to 40% faster. AMD A-series motherboards come with new generation APU able to provide ultimate DX11 graphics performance and additional up to 45% enhanced by AMD Dual Graphics technology.
All GIGABYTE Super4™ motherboards are equipped with the very best quality components that ensure that you PC is running at maximum power efficiency. Lower RDS(on) MOSFETs reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
