Performance
| DirectX version |
12.0 |
| TV tuner integrated |
N |
| PhysX |
N |
| NVIDIA GameWorks VR |
N |
| NVIDIA G-SYNC |
Y |
| OpenGL version |
4.4 |
Design
| Cooling type |
Active |
| Form factor |
ATX |
Ports & interfaces
| DVI-I ports quantity |
1 |
| DVI-D ports quantity |
1 |
| Interface type |
PCI Express 3.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
Processor
| Processor frequency |
1241 MHz |
| Processor boost clock speed |
1304 MHz |
| Maximum displays per videocard |
4 |
| Maximum digital resolution |
4096 x 2160 pixels |
| CUDA |
Y |
| Graphics processor family |
NVIDIA |
| Maximum analog resolution |
2048 x 1536 pixels |
Power
| Minimum system power supply |
400 W |
| Supplementary power connectors |
2x 6-pin |
Memory
| Memory clock speed |
7010 MHz |
| Discrete graphics adapter memory |
2 GB |
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
128 bit |
Additionally
| Dual-link DVI |
Y |
| Graphics controller |
GeForce GTX 960 |

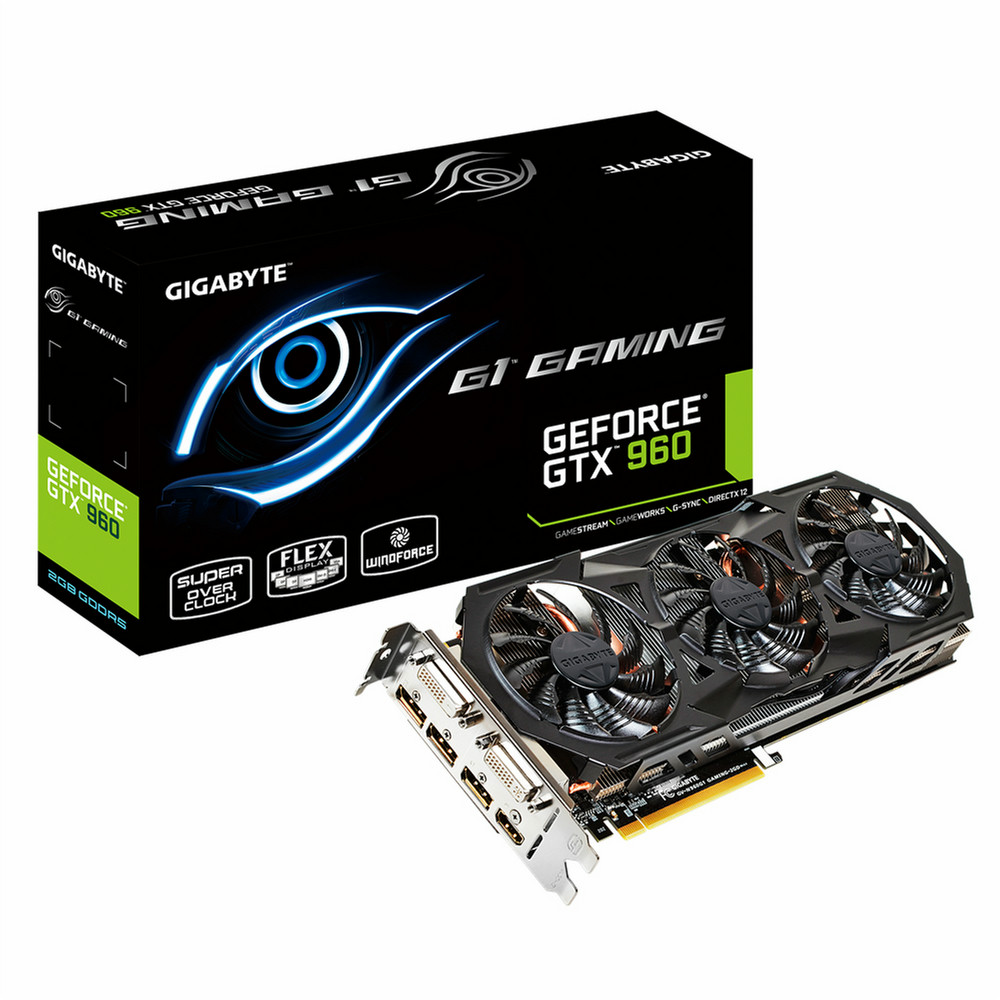

2 GB GDDR5, 128 bit, 7010 MHz, 28 nm, PCI-E 3.0, DirectX 12, max 4096 X 2160, Dual-link DVI-I/DVI-D/HDMI/Display Port, 400W
<b>SOC ─ GPU Gauntlet™ Sorting</b>
With GPU Gauntlet™ Sorting, the Gigabyte SOC graphics card guarantees the higher overclocking capability in terms of excellent power switching.
<b>WINDFORCE 3X cooling system</b>
<b>WINDFORCE 3X With Unique Blade Fan</b>
WINDFORCE 3X cooling system is equipped with high performance pure cooper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level.
<b>0dB semi-passive fans with intuitive fan indicators</b>
The fans will remain off when the GPU is under a set loading or temperature for low power gaming. Besides, LED fan indicators on the top of the graphics card provide an instant display of whether the fans are spinning or not.
<b>Flex Display technology</b>
GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.
<b>Ultra Durable VGA™</b>
<b>Lower GPU Temperature</b>
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
<b>Better Overclocking Capability</b>
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
<b>Decrease Power Switching Loss</b>
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
