Design
| Number of 3.5" bays |
8 |
| Number of 5.25" bays |
2 |
| Number of internal 3.5" bays |
6 |
| Side window |
N |
| Suitable for |
Home/Office |
| Form factor |
Ultra Tower |
| Number of expansion slots |
9 |
| Maximum CPU cooler height |
190 mm |
| Maximum graphics card length |
354 mm |
| Type |
PC |
| Number of 2.5" bays |
2 |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Cooling
| Bottom fans diameters supported |
140, 120 mm |
| Front fans installed |
1x 200 mm |
| Maximum bottom fans |
2 |
| Maximum top fans |
3 |
| Maximum front fans |
3 |
| Rear fans diameters supported |
120, 140 mm |
| Rear fans installed |
1x 140 mm |
| Maximum rear fans |
1 |
Storage
| Card reader integrated |
Y |
| Built-in HDD dock station |
Y |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

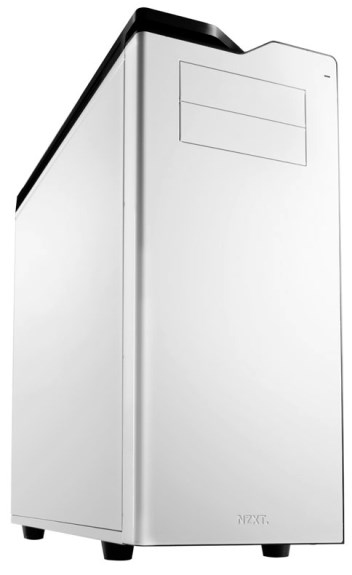

H630, Ultra Tower, Glossy White, ATX, Micro-ATX, XL-ATX, EATX (347mm x 272mm), 14 kg
Clean. Modern. Silent. Three words to describe the new H – an ear-defining change in the way you experience the PC.
Beautifully architected, the new H630 was engineered for
one simple purpose: provide enthusiasts the ability to build the highest performing systems while remaining audibly invisible.
Ushering in a new era of silent, high performance systems, the NZXT H630 leads the industry with a high-density sound dampening design that doesn’t impede its cooling capabilities.
Fully enclosed in steel and combined with an intelligent vent design to minimize intake noise, the H630 offers a sleek, jaw-dropping design that will leave you and your components speechless.
The new H is the first of its kind to support up to two 200mm fans in the front of the enclosure and the first in
the industry that allows for this much airflow expandability without the removal of sound dampening material.
The H630 offers exceptional support for a wide range of liquid cooling solutions, including the ability to mount 240mm, 280mm and 360mm radiators in both top and front positions.
Complete with fully modular hard drive cages , a ten-port fan hub and two removable SSD mounts located behind the motherboard tray, the H630 offers comprehensive customization for all enthusiasts.
